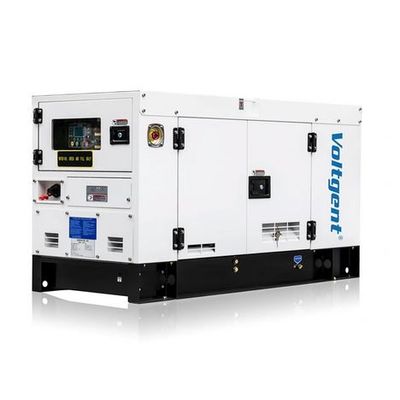

Voltgent - Model VF27.5-5 -Diesel Generator

GENERATOR SET SPECIFICATIONS

• Standby Power (kVA): 27.5
• Standby Power (kW): 22
• Prime Power (kVA): 25
• Prime Power (kW): 20
• Power Factor (Cos Phi): 0.8
• Diesel Engine Model: 4DW92-35D
• Frequency (Hz): 50
• Rated Speed (rpm): 1500
• Phase: 3
• Standrad Voltage (V): 400/230
• Available Voltage (V): 380/220   415/240

GENERATOR SET DIMENSIONS

• Length - Maximum: 1900
• Width - Maximum: 780
• Height - Maximum:  1000

ENGINE SPECIFICATIONS

• Engine model: 4DW92-35D
• Engine type: 4 stroke diesel
• Governor type: Electronic
• Injection type: Direct
• Aspiration type: Turbocharged
• Number of cylinders and arrangement: 4-L
• Bore and stroke (mm*mm): 90*100
• Displacement (L): 2.54
• Cooling system: water-cooled
• Fuel consumption @75% load (L/H): 4.14

ALTERNATOR SPECIFICATIONS

• Number of phase : 3
• Poles: 4
• Winding Connections (standard): Star-series
• Insulation: H class
• Enclosure (accordingly to IEC-34-5): IP23
• Excitation system: Self-excited, brushless
• Voltage regulator: AVR
• No. of bearings: Single bearing
• Coupling system: Flexibale disc
• Coating type: Standard (Vacuum impregnation)
