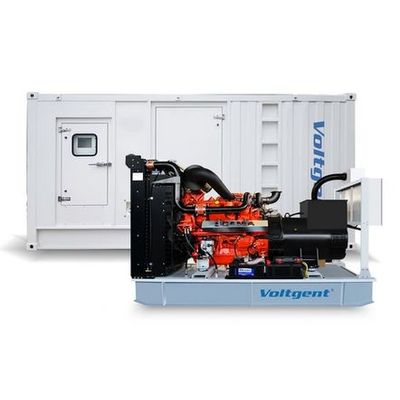

Scania - Model VS313-5 -Diesel Generator
Couple with Scania engine — Sweden brand and manufactured engine. Emission Test:EURO II and Stage II. Good cold start performance and can operated in 4000 meter site with tiny derate. 500 hours maitenance interval. Good one-step performance.
Most popular related searches
standby power
generator set
voltage regulation
voltage regulating
voltage regulator
diesel generator
power factor
diesel engine
GENERATOR SET SPECIFICATIONS
- Standby Power (kVA): 313
- Standby Power (kW): 250
- Prime Power (kVA): 275
- Prime Power (kW): 220
- Power Factor (Cos Phi): 0.8
- Diesel Engine Model: DC09 072A 02-12
- Frequency (Hz): 50
- Rated Speed (rpm): 1500
- Phase: 3
- Standrad Voltage (V): 400/230
- Available Voltage (V): 380/220 415/240
ENGINE SPECIFICATIONS
- Engine model: DC09 072A 02-12
- Engine type: 4 stroke diesel
- Governor type: EMS
- Injection type: Direct
- Aspiration type: Turbocharged
- Number of cylinders and arrangement: 5-L
- Bore and stroke (mm*mm): 130*140
- Displacement (L): 9.3
- Cooling system: water-cooled
- Fuel consumption @75% load (L/H): 41
ALTERNATOR SPECIFICATIONS
- Number of phase: 3
- Poles: 4
- Winding Connections (standard): Star-series
- Insulation: H class
- Enclosure (accordingly to IEC-34-5): IP23
- Excitation system: Self-excited, brushless
- Voltage regulator: AVR
- No. of bearings: Single bearing
- Coupling system: Flexibale disc
- Coating type: Standard (Vacuum impregnation)
