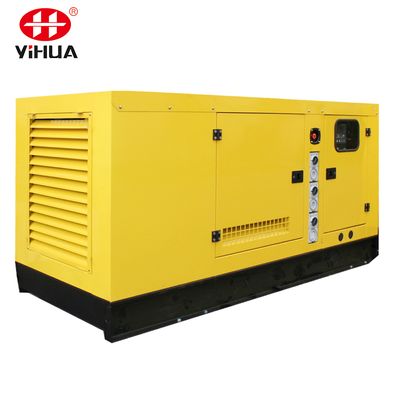

Yihua - Model 50HZ 200KW 250KVA Silent Type - Diesel Generator Set powered by Baudouin Engine
This generator set is designed for reliability and efficiency, featuring a Baudouin 6M16G275/5 engine. It operates at 50Hz with a power output of 200kW or 250kVA and includes options for different voltages such as 110/220V, 220/380V, and 440V among others. The electric system supports both 24V and 12V configurations. This genset can be set to a single-phase or three-phase, four-wire connection and is water-cooled to ensure optimal performance. The fuel tank is designed to support at least 8 hours of full-load operation. It meets Class H/F for insulation and IP21-23 for protection. Frequency stability is less than 0.5% with instantaneous deviations being within ±10%. Voltage deviations are maintained within ±1% at stable state and ±20% instantaneously, with a return time of less than 4 seconds. Additional features include silencing options and weather-proof configurations.
- Genset Type : Silent Type
- Voltage : 110/220V, 220/380V,230/400V, 440V, 480V, etc.
- Electric System : 24V/12V
- Frequency : 50HZ/60HZ
- Rated Speed : 1500/1800rpm
- Type : single phase or three phase,4wire connection
- Cooling System : Water Cooled
- Fuel Tank : at least 8 hours running time for full load
- Insulation Class : Class H/F
- Protection Class : IP21-23
- Wave Distort : <10%
- Frequency at Stable State : <0.5%
- Frequency Deviation at Instantaneous State : ≤+10%
- Frequency Return Time : ≤3s
- Voltage deviation at stable state : ≤±1%
- Voltage deviation at instantaneous state : ≤+20%
- Voltage return time : ≤4s
- Voltage modulation : ≤0.3%
- Other : Open/Silent/weather proof/trailer type for optional with silencer,manual and tools
