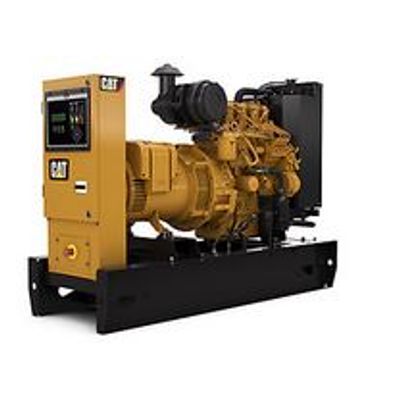

Caterpillar - Model C1.1 (50 Hz) -Diesel Generator Sets

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meetsNFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

• Cat Diesel Engine
• SR5 Alternator
• EMCP Control Panel
• Cooling System
• Certifications
• One Safe Source
• World Wide Product Support

• Generator Set Specifications
• Engine Specifications
• Generator Set Dimensions

Air Inlet System

• Air cleaner; light duty with disposable element

• Air cleaner; light duty with disposable element

Control Panel

• EMCP 4.1

• EMCP4.1 control panel

Cooling System

• Radiator and cooling fan with guards

• Caterpillar extended life coolant

• Fan drive, battery charging alternator drive

• Coolant drain line with valve

• Radiator and cooling fan with guards

Exhaust System

• Stub pipe, gaskets, raincap & SAE exhaust flange for customer use; shipped loose

• Stub pipe, gaskets, raincap & SAE exhaust flange for customer use; shipped loose

Fuel System

• Base, formed steel with single wall integral 8-hour fuel tank

• Standard open set fuel tank / base supplied

• Base, formed steel with single wall integral 8-hour fuel tank

• Standard open set fuel tank / base supplied

Generators and Generator Attachments

• Tower panel, IP22, bottom cable entry

• IP23 Protection

• Circuit breaker, IEC, 3 pole, mounted in tower panel

• Segregated low voltage (AC/DC) wiring panel

• 12 Leads

• Voltage regulator (single phase sensing)

• Segregated low voltage (AC/DC) wiring panel

• 12 leads

• Tower panel, IP22, bottom cable entry

• IP23 Protection

Governing System

• Mechanical governing system

• Mechancial governing system

Lube System

• Oil drain line with valve

• Lubricating oil

• Oil drain line with valve

• Lubricating oil

Mounting System

• Captive linear vibration isolators between base and engine-generator

• Includes lifting provisions and termination points for coolant

• Skidbase as standard

• Anti-vibration mounts

Starting / Charging System

• 12 Volt battery with rack and cables

• 12V battery with rack & cables

General

• Engine and alternator pre-paint, Caterpillar yellow

Alternator Options

• Coastal insulation protection

Certificates

• European upgrade to STD set for CE certificate

• Global certification for CIS

Circuit Breakers

• Pad-lockable breaker device

• 4 Pole circuit breaker

Control Panel

• Volt free contacts for common alarm

• Battery charger

• Emergency stop with key

• EMCP 4.2

Control Pane

• Volt free contacts for genset running

Cooling System

• Coolant heater

Enclosures

• Single point lift for enclosure

• Sound attenuated enclosure (GALV)

Fuel System

• Low fuel level alarm

Mounting Options

• Silencer installation kit

• Industrial silencer removal

• Battery removal

Special Test and Inspection

• PGS test report @1.0 power factor

General

• Radiator stone guard

• Packing case - compact set

• Packing case - canopied set
