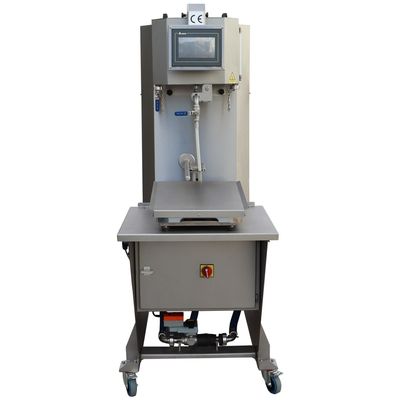

Maurer Gép - Model MPAD 400 - Diesel Pasteurizer
Maurer Gép specializes in producing industrial-grade pasteurization machines, particularly suited for fruit and vegetable processing. Their product offerings include a range of diesel-powered pasteurizers, such as the MPAD series. The machines are crafted from high-quality WNr. 1.4301, AISI 304 stainless steel ensuring durability and compliance with IP65 standards for electrical enclosures. The equipment automatically manages the heating medium's temperature, and in instances where the juice temperature falls below the set point, a built-in by-pass system maintains the cycle until optimal conditions are restored. Notable features of these machines include their energy-efficient operation with minimal maintenance requirements, ease of cleaning with sponge ball technology, and options for manual or semi-automatic fillers. These machines serve a crucial role in ensuring thermal processing efficiency and consistency in juice filling operations, covering capacities from 400 L/h up to 1200 L/h with heating efficiencies maximized at varied diesel burner outputs.
Temperature check is done at 2 points in the heating medium and once at the outlet of the product. The machine automatically controls the heating medium temperature. It is fully automatic. If the temperature of the juice falls below the desired temperature, the output port of the machine stops the filling and the juice circulates via the by-pass system until reaches the set temperature. When the set temperature is reached machine continues the juice circulation toward to filling system again. The juice spiral can be cleaned very simply by using a sponge ball. It requires minimal maintenance.
- Manual bottle filler
- Manual Bag in Box filler with a digital scale
- Semi-automatic Bag in Box BIB TOP 180
- Filler with automatic dosing
- Performance: 400 L/h (at a filling temperature of 80°C)
- Electric demands: 1 kW, 230 V, 6 A
- Gas Burner: 35 kW
- Fuel: Diesel
- Material: Wnr. 1.4301, AISI 304 stainless steel
- Dimensions: 1600x800x1950 mm
- Weight: 320 kg
- IP65 Electrical control box
- Connection: DN 25 Stainless Steel Sanitary Union
- Flue gas duct: 110 mm
- Automatic temperature regulation
- Automatic by-pass system
- Easy to clean with sponge balls
- Minimal maintenance
