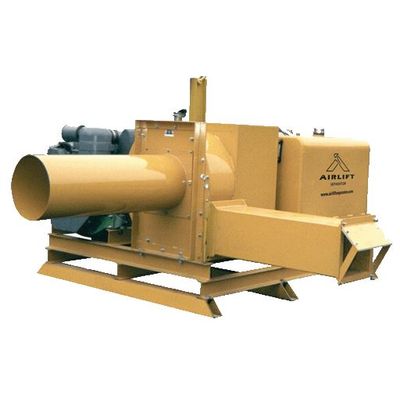

Airlift - Model AL-200-D -Diesel Separator
The Airlift Separator AL-200 can scale to almost any size operation at only a fraction of the investment of other plastic removal equipment on the market today. It even works with the existing hydraulic power supply on your screening equipment.
The AL-200 is the smallest plastic removal system on the market today. Sitting on a 4’ x 4’ footprint, it can be moved easily from place to place with a forklift or a loader. The AL-200 allows you to remove plastic debris at the source without slowing or stopping production.
The Airlift Separator AL-200 can be assembled and operated by a single person in a couple of hours. Fifteen minutes for periodic cleaning and maintenance every couple months is all the unit requires.
Power
- 46HP Diesel Engine
- Air Cooled
- 12 Volt Electric Start
- Temperature Gauge
- Manual Throttle Control
- Engine rpm Gauge
Hydraulic System
- 50 Gallon Hydraulic Reservoir
- Hydraulic Pump
- Auto Controlled Hydraulic
Cooling System
Electrical Lockout
- Key Switch
- Remote Mount Emergency
Stop Switch
Approximate Shipping Weight
- 2465 lbs.
Fan Controller
- Variable Speed rpm
- Digital Display
- Hour Meter
- Volt Meter
- Soft Start and Stop Technology
Diesel Fuel Tank
35 Gallon w/Fuel Gauge
Fuel Consumption 1.9 gph
Inlet 14” Suction Tube
Discharge Containment
- Filter Stock
- Container Adapter (Optional)
Physical Dimensions of Skid
- Length: 78”
- Width: 68”
- Height: 46”
Note: Dimensions do not include Inlet and Discharge Assemblies
