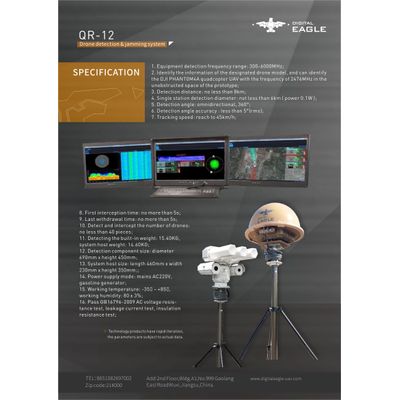

Application: political core areas, chief residences, major security tasks guard point surrounding, nuclear power plants, oil refineries and such flammable areas, and etc.
Detection parameters:
1.Detection frequency range: Radio signal link band based on civilian-level drone, range 300-6000MHz.
2. Can identify the majority of drone models in market.
3. Max detection distance: no less than 8km.
4. Max detection distance of single detection station: no less than 6km;
5. Detection angle: full 360 degree.
6. Detection angle error accuracy (root mean square) : less than 5 degree (rms);
7. Tracking speed: can reach to 45km/h.
Jamming parameters:
1.Jamming frequency range: GPS / Glonass, 2.4G, 5.8G, 900M
2.Max jamming distance: 1 ~ 2km, depending on the working environment on site;
3. Function: Expel or land.
4. Operation: Jamming function can be turned on automatically or manually after after detected.
