Runpotec - Model RM35 - Digital Cable Length Measuring Device for Various Cables and Pipes

SHARE

The RM35 Digital Cable Length Measuring Device by RUNPOTEC is designed for accurately measuring cables, ropes, and pipes ranging from 2 mm to 32 mm in diameter. This device offers versatility in various electrical and construction applications, accommodating single conductors and varied material types. Its precision engineering ensures ease of use and reliable results in all types of cable management tasks. The RM35 is part of a comprehensive cable roller system and can be paired with additional RUNPOTEC accessories like the XB 300 Cable Roller for enhanced functionality. The device includes user-friendly features such as a belt clip system, anchor pad, and various guide jaw sets. Its robust construction supports professional-grade operations, ensuring longevity and consistent performance in demanding environments. Perfect for professionals requiring exact measurements for installations or maintenance tasks.

Most popular related searches
cable monitoring system
lithium battery
lithium ion battery
cable pulling
integrated charging
  • Jobsite capable
  • -Splash water & dust protected
  • -Impact and breakage protected
  • For versatile use with cables of Ø 2 mm - 32 mm, single conductors, ropes, pipes
  • Compatible with all unwinding systems
  • Calibration capable
  • For measuring lengths with cable pulling systems
  • Easy to use
  • -Totalling function

The RM35 is a digital cable length measuring device which can be used to precisely measure cables, single conductors, ropes, pipes or hoses with a diameter of Ø 2 mm to Ø 32 mm. It is splashwater resistant and dust resistant, extremely shock-resistant and thus ideally suited for the jobsite. The RM35 has 2 totalling buttons which can be used to add up the measured values ​​as you work. A countdown function is also included, which can be used to measure predetermined cable lengths. The RM35 is equipped with a lithium-ion battery that has an extremely long runtime (100 hrs. continuous operation without backlighting). The battery can be charged using the integrated USB-C charging socket. The RM35 is perfectly stored in the RUNPOTEC system case, which is also compatible with Sortimo cases. The RM35 can be easily connected to the XB 300, XB 500 or XB 500 T cable roller system via the supplied belt and clip system. The belt length can be adjusted from 750 mm to 1200 mm. Alternatively, this belt can also be fixed to the connecting pad, thereby offering a fixation option for all conventional rolling systems. Calibratable INFO: Should you require a calibrated RM35, please contact your sales partner or RUNPOTEC directly to clarify price and delivery time.
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com.

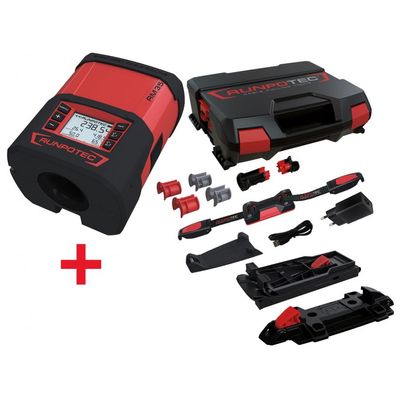

Scope of supply: 1 x RM35, 1 x belt with clip system 1200 mm, 1 x anchor pad, 1 x mounting plate system case, 2 x guide jaws gray (Ø 12 mm / 18 mm), 2 x guide jaws red (Ø 6 mm / 24 mm), 1 x USB-C charging cable, 1 x mains plug,
1 x RUNPOTEC system case

Dimensions: L 453mm x W 418mm x H 170mm
Calibration capable: Yes according to Module B - EU type examination certificate no.: A 0445/2020-0.752.468/2021
Intended location: open (outdoor)
Weight: 4.26 kg
Cable cross-section: from Ø 2 mm - 32 mm
Max. display value: 99999.99 m / 99999.99 ft
Min. display value: 0.01 m
Max. speed: 1 m/s
Measurable length: min. 5 m
Measuring accuracy: Measuring accuracy III - > 10 m ± 1%
Measuring wheel diameter: 25 mm
Power source: Lithium Ion battery - continuous operation 100 hrs. (without lighting)
Display: 1.5" LCD display (with backlighting)
Protection rating: IP 44
Unit of measurement: Meter/Feet
Temperature: -10°C to +40°C
Air humidity: no condensation
Mechanical: Class M2
Electromagnetic: Class E1
