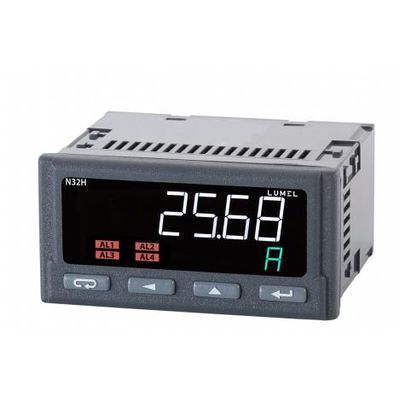

Lumel - Model N32H -Digital Meters for DC Circuit Parameters

N32H meter distinguishes:

• modern and easy-to-read LCD display
• universal measuring input
• RS-485 digital output as a standard.

• voltage measurement ±600V (maximum range display ±1200 v), current measurement via shunt, power, energy and capacity measurement of d.c. circuits
• two-line LCD display with high contrast and built-in backlighting
• possibility of displaying the measured value and time simultaneously or an second measured value or unit (automatically displayed unit of measured quantity)
• wide range of voltage measurement at the shunt input up to 1500 mV
• high sampling frequency of measured signals
• programming parameters via buttons or rs-485 interface and free e-con software
• 4 alarm outputs with signaling on led diodes, working in 7 different modes (option)
• pulse output to control energy consumption
• conversion of any measured value into an analog signal 0/4...20 mA or 0...10V (option).
• memory of minimal and maximal values for all measured quantities.
• automatic voltage measurement compensation function alarms
• overall dimensions: 96 x 48 x 93 mm.
