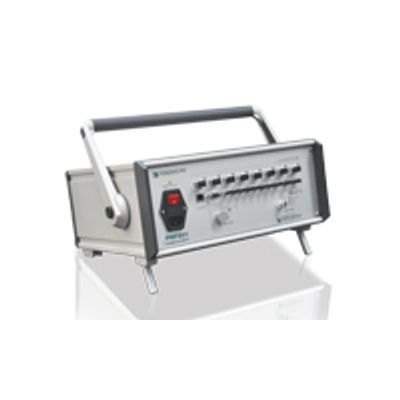

Ponovo - Model NF801 -Digital Relay Testers
NF801 is the new generation of digital relay tester. This digital relay tester is equipped with 8 optical ports, and its powerful data processing capability can achieve the full functional test of the IEC61850 devices. Support GPS\ IRIG-B\ IEEE 1588 synchronization, it makes the substation internal debugging and substation to substation combine debugging available. NF801 integrated some unique functions including: the abnormal SV\GOOSE simulation, virtual terminal test, the optical power testing and so on.
Most popular related searches
- 8 fiber optical ports for:Receiving and sending IEC61850-9-2 format SV and GOOSE message;Receiving and sending IEE1588 message;Measuring received fiber optical power
- Provide flexibility to configure both SV (IEC61850-9-2) and GOOSE ports independently.
- Each port can be configured as Receive and Send at the same time or it can be configured as Receive or Send.
- Can check the GOOSE communication link
- SV, GOOSE configure message can be saved and recall repeatedly
- With the IEEE1588 synchronization function, deviation of the time is less than ±80ns
- With GPS, IRIG-B code synchronization interface
