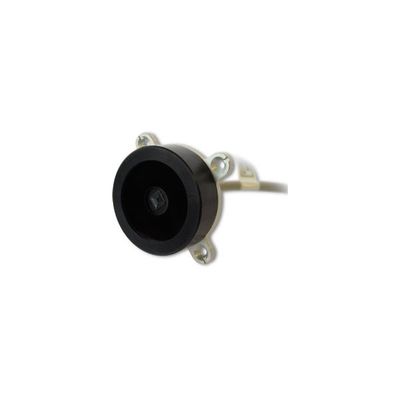

Solar MEMS - Model ISS-DX - Digital Sensor for Solar Trackers
ISS-DX sun sensor measures the incident angle of a sun ray in both orthogonal axes and the solar radiation. The high sensitivity reached is based on the geometrical dimensions of the design. Its characteristics make it a suitable tool for high accurate sun-tracking and positioning systems, with low power consumption and high reliability. ISS-DX sun sensor has been designed with a unique and novel own technology based on MEMS fabrication processes to achieve high integrated sensing structures at low cost.
Most popular related searches
sun sensor
renewable energy industry
solar tracking
solar monitoring system
energy industry
solar radiation
renewable energy
solar tracking sensor
solar tracker
solar tracking control system
- Two accuracy axes.
- Field of view from 10º to 120º (depending on the model).
- Accuracy from 0.005º to 0.06º (depending on the model).
- Position error (3sigma) less than 0.3º.
- It measures direct normal radiation (DNI).
- Communication interface MODBUS RTU over RS-485.
- Dimensions about 80x80x27 mm.
- Useful in aeronautics and renewable energy industries.
- Two orthogonal axes sun sensor
- Wide or narrow field of view
- High accuracy
- MODBUS over RS-485
- Low power consumption: 33 mA
- Wide operating voltage range: 5÷12 V
- Industrial temperature range: - 40° to 85°
- Reduced size
- Low weight
- IP65 protection
- Reverse polarity protection
- Sun tracking/pointing systems
- Heliostats
- Attitude control using light sources
- Aircraft attitude control
- Satellite attitude control
- Determination of sun radiation
