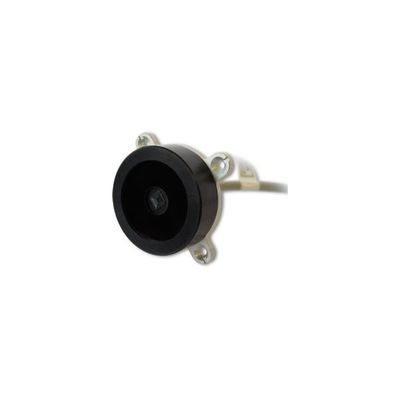

Solar MEMS - Model ISS-TX - Digital Sensor for Solar Trackers
From Solar Tracking - Sun Sensors and Control Systems
ISS-TX sun sensor measures the incident angle of a sun ray in both orthogonal axes and the solar radiation. The high sensitivity reached is based on the geometrical dimensions of the design. Its characteristics make it a suitable tool for high accurate sun-tracking, with low power consumption and high reliability. ISS-TX sun sensor has been designed with a unique and novel own technology based on MEMS fabrication processes to achieve high integrated sensing structures at low cost.
Characteristics:
- Two accuracy axes.
- Field of view from 10º to 120º (depending on the model).
- Accuracy from 0.005º to 0.06º (depending on the model).
- It measures direct normal radiation (DNI).
- Communication interface MODBUS RTU over RS-485.
- Dimensions about 80x80x27 mm.
- Useful in renewable energy, specifically on solar trackers.
Features
- Two orthogonal axes sun sensor
- Wide or narrow field of view
- High accuracy
- MODBUS over RS-485
- Low power consumption: 33 mA
- Wide operating voltage range: 5÷12 V
- Industrial temperature range: - 40° to 85°
- Reduced size
- Low weight
- IP65 protection
- Reverse polarity protection
Applications
- Sun tracking/pointing systems
- Heliostats
- Attitude control using light sources
- Aircraft attitude control
- Satellite attitude control
- Determination of sun radiation
