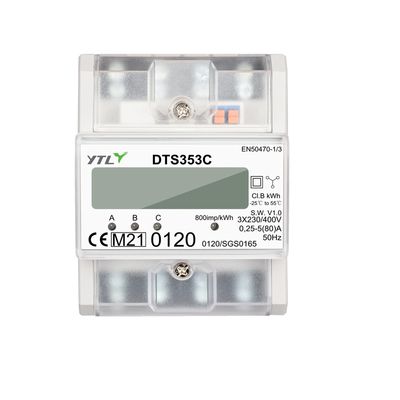

YTL - Model DTS353C - DIN rail Three Phase 4 Module Solar Invertor MID Approved
It is a simple three phase four module Din-Rail meter with transparent meter case, which is widely used in Sub-metering system. This meter is very popular in worldwide for its novel appearance, good quality and reasonable price.Most popular related searches
multifunctional energy meter
energy meters
energy meter
energy metering
three-phase electricity meter
three-phase energy meter
electricity meter
solar module
● LCD backlight display; ● Inside battery to support power off display.
Voltage:3*230/400V
Current:3*5(80)A
Accuracy class:1.0
Standard:IEC62052-11, IEC62053-21
Frequency:50-60Hz
Impulse constant:800imp/kWh
Display:LCD 6+2
Power consumption:≤2W, 10VA
Starting current:0.004Ib
Working Temperature:-20～55℃
Storage Temperature:-25～70℃
Working voltage:0.9—1.1 Rated voltage
Utmost voltage:0.8—1.15 Rated voltage
Average humidity value of year:≤75%
Creep:Less than 1 impulse when the rated voltage is 115% or current loop without current.
