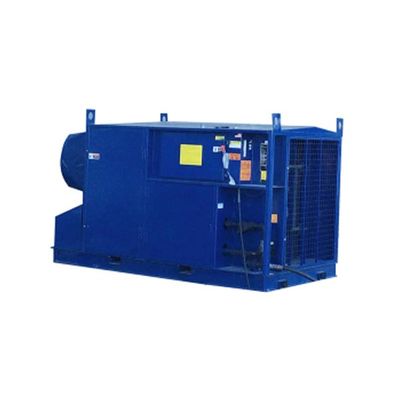

TIOGA - Model AH-22 Series -Direct Fired Concealed Flame Heaters
Model: AH-22. Voltages: 3 Phase 208V, 3 Phase 480V. BTU/HR: 2000000 Btu/Hr. CFM: 12000. Fuel Type: NG or Vapor Propane. Dimensions: 60" x 101" x 64".
Most popular related searches
AH-22-12
- Thermostat Control: Modulating
- Btu/Hr: 2,000,000
- Maximum Btu/hr: 2,000,000
- Minimun Btu/Hr: 12,000
- CFM: 11,000
- External Static Pressure: Up to 2″ ESP
- Fan Type: Forward Curved
- Discharge Diameter: 24″
- Voltage: 1 Phase, 208 Volt
- Current Consumption: 40 amps
- Recommended Fuse Size: 75 amps
- Fuel Type: NG or Vapor Propane
- Natural Gas Consumption: 600 CFH Lo-Fire – 2,000 CFH Hi-Fire
- Propane Consumption: 6.6 GPH / 21.8 GPH
- Pressure Range: 1 – 25 lbs.
- Temperature Control Discharge: Yes
- Air Proving Safety: Yes
- Flame Sensing Safety: Yes
- Net Weight: 2,200 lbs.
- Data Sheet: AH-22 Data Sheet
- NEMA Plug Configuration: N/A
- High Limit Discharge: Yes
- Dimensions: 60″ x 101″ x 64″
AH-22-32
- Thermostat Control: Modulating
- Btu/Hr: 2,000,000
- Maximum Btu/hr: 2,000,000
- Minimun Btu/Hr: 12,000
- CFM: 11,000
- External Static Pressure: Up to 2″ ESP
- Fan Type: Forward Curved
- Discharge Diameter: 24″
- Voltage: 3 Phase, 208 Volt
- Current Consumption: 22 amps
- Recommended Fuse Size: 40 amps
- Fuel Type: NG or Vapor Propane
- Natural Gas Consumption: 600 CFH Lo-Fire – 2,000 CFH Hi-Fire
- Propane Consumption: 6.6 GPH / 21.8 GPH
- Pressure Range: 1 – 25 lbs.
- Temperature Control Discharge: Yes
- Air Proving Safety: Yes
- Flame Sensing Safety: Yes
- Net Weight: 2,200 lbs.
- Data Sheet: AH-22 Data Sheet
- NEMA Plug Configuration: N/A
- High Limit Discharge: Yes
- Dimensions: 60″ x 101″ x 64″
AH-22-34
- Thermostat Control: Modulating
- Btu/Hr: 2,000,000
- Maximum Btu/hr: 2,000,000
- Minimun Btu/Hr: 12,000
- CFM: 11,000
- External Static Pressure: Up to 2″ ESP
- Fan Type: Forward Curved
- Discharge Diameter: 24″
- Voltage: 3 Phase, 480 Volt
- Current Consumption: 11 amps
- Recommended Fuse Size: 20 amps
- Fuel Type: NG or Vapor Propane
- Natural Gas Consumption: 600 CFH Lo-Fire – 2,000 CFH Hi-Fire
- Propane Consumption: 6.6 GPH / 21.8 GPH
- Pressure Range: 1 – 25 lbs.
- Temperature Control Discharge: Yes
- Air Proving Safety: Yes
- Flame Sensing Safety: Yes
- Net Weight: 2,200 lbs.
- Data Sheet: AH-22 Data Sheet
- NEMA Plug Configuration: N/A
- High Limit Discharge: Yes
- Dimensions: 60″ x 101″ x 64″
