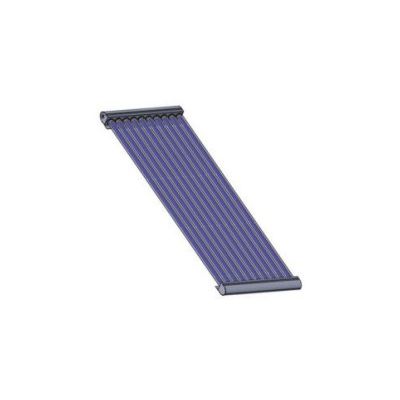

OEM Vario - Model 1000 -19010 -Direct Flow Full Vacuum Tube Collectors
Housing, manifold and footer, silver anodized E6/EV1. 10 df tubes power (absorber coated on both sides). Annual energy yield: 1.150 kWh*. Gross area: 1,62 m2. Absorber area: 1,63 m2. Aperture area with Reflector: 1,46 m2. Aperture area without Reflector: 1,02 m2. Dimension: 2170 x 750 mm. Connections = quick and easy plug-in. With Würzburg 25°C look at DIN CERTCO certificate 011-7S471 R, reachable with appropriate reflector what must provided on-site (by owner)
Most popular related searches
- 4 Times higher efficiency factor than solar modules for electricity generation
- 100% Made in Germany
- Sustainable protection of the vacuum due to the patented glass to metal sealing
- Weather resistant nano coating prevents adhesion of dirt
- 20 Years manufacturer’s warranty
- Tubes rotatable by 360 ° and optimally adjustable to the sun
- Similar tube distance when connecting several collectors
- Miscellaneous mounting options: flat roof, pitched roof, facade, balcony, elevation
- Easy mounting without using heavy tools due to the plug-in connections
- Tubes plugable at manifold with quick exchange possibility
- For perfect optical adaption to roof and facade are the collectors available in 213 RAL colours
- Collectors are tested by TÜV institute to the standard DIN EN 12975-1:2006-06, DE EN 12975-2:2006-06,
- Solar Keymark register number.: 011-7S471R
- impact-from-hail-test tested to the standard: DIN EN 12975-2:2006
