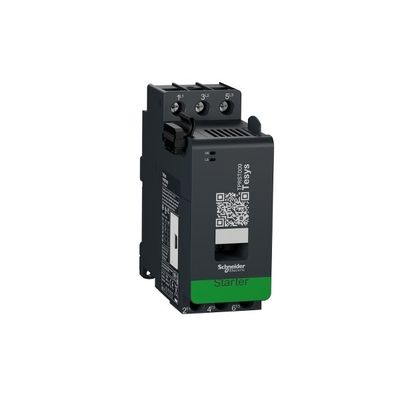

TeSys island - Model TPRST009 -Direct Online Starter, 15A AC-1, 9A AC-3, 4kW / 5hp

• Function Available
• Upstream voltage presence detection
• Electrical line and load protection
• Power and energy monitoring when connected with TPRVM voltage module
• product compatibility
• TPRBC bus coupler
• TPRVM voltage interface module
• poles description: 3P 3 NO
• utilisation category
• AC-1
• AC-2
• AC-3
• AC-4
• motor power kW
• 2.2 kW 230 V 50 Hz AC-3)
• 4 kW 380...415 V 50 Hz AC-3)
• 4 kW 440 V 50 Hz AC-3)
• 5.5 kW 500 V 50 Hz AC-3)
• 5.5 kW 690 V 50 Hz AC-3)
• motor power HP (UL / CSA)
• 0.33 hp 120 V at AC 60 Hz for 1 phase
• 1 hp 240 V at AC 60 Hz for 1 phase
• 2 hp 208 V at AC 60 Hz for 3 phase
• 2 hp 240 V at AC 60 Hz for 3 phase
• 5 hp 480 V at AC 60 Hz for 3 phase
• 7.5 hp 600 V at AC 60 Hz for 3 phase
• [Ue] rated operational voltage: <= 690 V AC 47...63 Hz
• [Ie] rated operational current
• 9 A 122 °F (50 °C)) <= 440 V AC-3
• 15 A 122 °F (50 °C)) <= 440 V AC-1
• [Ith] conventional free air thermal current: 15 A 122 °F (50 °C)
• [Ui] rated insulation voltage
• 690 V IEC 60947-4-1
• 600 V UL 60947-4-1
• 600 V CSA C22.2 No 60947-4-1
• [Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
• overvoltage category: III
• thermal protection adjustment range: 0.18…9 A
• thermal overload class: Class 5…30
• reset: Remotely or automatically
• Irms rated making capacity: 250 A 440 V IEC 60947
• rated breaking capacity: 250 A 440 V IEC 60947
• [Icw] rated short-time withstand current
• 210 A 104 °F (40 °C) - 1 s
• 105 A 104 °F (40 °C) - 10 s
• 61 A 104 °F (40 °C) - 1 min
• 30 A 104 °F (40 °C) - 10 min
• average impedance: 2.5 mOhm - Ith 15 A 50 Hz
• power dissipation per pole
• 0.2 W AC-3 - Ith 9 A
• 0.56 W AC-1 - Ith 15 A
• [Uc] control circuit voltage: 24 V DC supplied by the bus coupler
• current consumption
• 160 mA contactor sealed
• 160 mA contactor closing
• power dissipation in W: 3.5 W at Ie

Complementary

• mechanical durability: 30 Mcycles
• electrical durability
• 2 Mcycles 9 A AC-3 440 V
• 1.2 Mcycles 15 A AC-1 440 V
• maximum operating rate: 3600 cyc/mn AC-3
• operating time
• < 100 ms closing
• < 30 ms opening
• Safety performance level
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
• B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• protection type
• Thermal overload protection
• Motor overheat
• Overcurrent
• Undercurrent
• Jam
• Long start
• Stall
• Rapid cycle lockout
• Phase sequence
• Rapid restart lockout
• Phase reversal
• Phase loss
• Phase unbalance
• Ground current
• Monitoring type
• Time device ON
• Time device switch ON
• Number of faults
• Number of switching cycles
• Number of device power cycles
• Average current Iavg
• Average voltage Vavg
• Max current Imax
• Max voltage Vmax
• Active and reactive power with voltage module
• Active and reactive energy with voltage module
• True power factor with voltage module
• local signalling
• For DS (device status) 1 LED (green/red)
• for LS (load status) 1 LED (green/red)
• Standards
• EN/IEC 60947-1
• EN/IEC 60947-4-1
• UL 60947-4-1
• CSA C22.2 No 60947-4-1
• product certifications
• EAC
• CSA
• CCC
• UL
• mounting mode: Horizontal and vertical 35 mm symmetrical DIN rail)
• connections - terminals
• Screw-clamp terminals 1 0.00…0.01 in² (1…4 mm²) AWG 16...AWG 12)rigid
• screw-clamp terminals 2 0.00…0.01 in² (1…4 mm²) AWG 16...AWG 12)rigid
• screw-clamp terminals 1 0.00…0.01 in² (1.5…4 mm²) AWG 16...AWG 12)flexible without cable end
• screw-clamp terminals 2 0.00…0.01 in² (1.5…4 mm²) AWG 16...AWG 12)flexible without cable end
• screw-clamp terminals 1 0.00…0.01 in² (1…4 mm²) AWG 16...AWG 12)flexible with cable end
• screw-clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) AWG 16...AWG 14)flexible with cable end
• tightening torque
• 15.05 lbf.in (1.7 N.m) flat Ø 6 mm
• 15.05 lbf.in (1.7 N.m) Philips No 2
• Width: 1.77 in (45 mm)
• Height: 4.57 in (116 mm)
• Depth: 4.53 in (115 mm)
• Product Weight: 1.45 lb(US) (0.656 kg)

Environment

• ambient air temperature for storage: -13…158 °F (-25…70 °C)
• ambient air temperature for operation
• 14…122 °F (-10…50 °C) without derating
• 122…140 °F (50…60 °C) with current derating
• Relative Humidity: 5…95 %
• operating altitude: 0...6561.68 ft (0...2000 m) without derating
• IP degree of protection: IP20
• pollution degree: 2
• protective treatment: TC
• fire resistance:
• 1760 °F (960 °C) UL 94
• 1562 °F (850 °C) IEC 60695-2-1
• 1202 °F (650 °C) IEC 60695-2-12
• shock resistance: 15 gn 11 ms) IEC 60068-2-27
• vibration resistance:
• 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6
• 1 gn 13…200 Hz) IEC 60068-2-6
• electromagnetic compatibility
• Electrostatic discharge immunity test, level 3 8 kV air, 6 kV contact)EN/IEC 61000-4-2)
• Radiated RF field immunity test, level 3 10 V/m)EN/IEC 61000-4-3)
• Fast transient immunity test, level 4 4 kV)EN/IEC 61000-4-4)
• Surge immunity test, level 3 2 kV)EN/IEC 61000-4-5)
• Surge immunity test, level 4 4 kV)EN/IEC 61000-4-5)
• Conducted RF disturbance immunity test 20 V)EN/IEC 61000-4-6)

Ordering and shipping details

• Category: 22352-TESYS ISLAND LOAD CONTROLLERS
• Discount Schedule: I12
• GTIN: 3606489832742
• Nbr. of units in pkg.: 1
• Package weight(Lbs): 25.01 oz (709.0 g)
• Returnability: Yes
• Country of origin: ID

Packing Units

• Unit Type of Package 1: PCE
• Package 1 Height: 1.97 in (5 cm)
• Package 1 width: 4.92 in (12.5 cm)
• Package 1 Length: 5.12 in (13 cm)
• Unit Type of Package 2: S02
• Number of Units in Package 2: 14
• Package 2 Weight: 22.60 lb(US) (10.252 kg)
• Package 2 Height: 5.91 in (15 cm)
• Package 2 width: 11.81 in (30 cm)
• Package 2 Length: 15.75 in (40 cm)

Contractual warranty

• Warranty: 18 months
