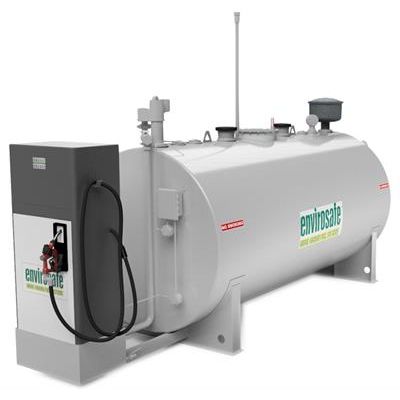

Envirosafe - Model 2,000 Gallon -Dispenser Fuel System

• Fireguard tanks insulate product in tank from ambient temperature variations, reducing emissions to the environment.
• Available with dual compartments for multiple products in one tank with double bulk head to prevent cross contaminations
• Primary and secondary tanks are tightness tested on site using standard air pressure test procedures
• Steel outer wall provides low cost maintenance and protection from weathering
• Primary storage tank and secondary containment are compatible with a wide range of fuels and chemicals
• Support designs available for all seismic requirements
• Interstitial space can be monitored for leak detection
• Available in self-contained double walled and protected double walled tanks
• Turn-key, inexpensive installation and startup
• 30 year tank warranty backed by the Steel Tank Institute

2,000 Gallon Dispenser System Features

• (1) UL-142 Flameshield or
• UL-2085 Fireguard Tank Mounted on Saddles
• (2) 6” 8 Oz Emergency Vent Male w/O-ring
• (1) 2” Stack Vent w/ 2” Mushroom Cap
• (1) 7.5 Gal 4” Aluminum Overspill Container 179 Series Hinged Style Fill Cap
• (1)  818 Clock Gauge w/ Standard Float
• (1) Engineered Hurricane Tie Down
• (1) 1” Automatic Shutoff Nozzle, Breakaway Swivel 18′ x 1” Hose, 12” Jumper Hose
• (1)  Tank Decal Kit
• (1) Envirolastic 940 DTM Polyaspartic Urethane for High Performance Finish
• (1) 1/3 Hp. Pump Assy w/ Anti-Syphon Valve & Ball Valve w/ Smart Controller & NEMA 4 ENCLOSURE
• (1) Single Product Dispenser Containment Pan
• (1) Bennett Dispenser Single Hose/Single Product with 10:1 Pulser
• (1) Interstitial Leak Gauge
• (1) Emergency Shutoff Valve (Shear Valve)
• (1) 18” Man way for easy inner tank accessibility
• (1) UL Labeled & Listed (Per you local Fire Marshall)
• (1) Step Ladder with Platform
• STEEL THICKNESS 3/16” SHELL & 1/4” HEAD
• (1) Touch-up Paint

Fireguard Features

• UL 2080 Listed “Fire Resistant”
• UL 2085 Listed “Protected”
• Both Inner & Outer Steel Tanks built to UL Standards
• Uniform Fire Code UFC “Protected” Tank
• National Fire Protection (NFPA) 30 & 30A
• International Fire Code (IFC)
• Ballistics Protection
• Impact protection
• California Air Resources Board (CARB) for Air Emissions
• Steel Tank Institute (STI) Standard F941 for Thermally Insulated Aboveground Storage Tanks

Flameshield Features

• Tested Two-Hour Fire Resistance
• Built to UL 142 Standards
• Tested by Southwest Research Institute to SwRI 97-04
• Double-Wall Tanks Have Fully Monitorable Interstitial Space for Leak detection
