GA BlueLine² - Distributed with Triple Redundancy

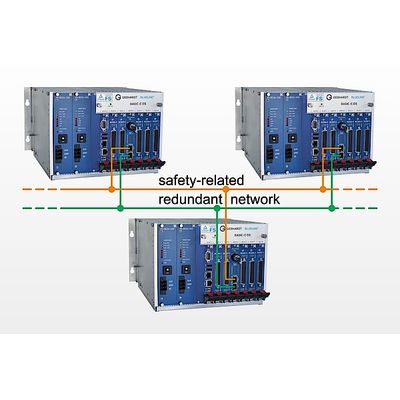

The fail-safe GA BlueLine² TMR /CD is a distributed TMR system with triple redundancy, composed of three single systems connected via Ethernet. Each unit supports up to six I/O cards (including CPU).
Most popular related searches
- Three identical racks, configured as TMR over Ethernet
- Each rack for up to 6 cards (I/O cards including CPU)
- FS2 data bus with integrated Ethernet
- Assembly: on mounting plate
- Power supply: single or redundant 24VDC power supplies (GA-PS-DC24-150), max. 150W, optional AC power supply, front installation
- Connectors: primarily I/O cards with frontal 50-pin D-sub socket
- Ventilation: built-in active fans above the cards, replaceable, fan monitoring; replaceable dirt filter under the rack
- Operating temperature range: 0° ... +60°C (+32° ... 140°F)
- Dimensions: 191 x 300 x 290 mm (H x W x D)
- Standards: IEC 61508, EN ISO 13849, IEC 62061, IEC 61511, IEC 61131, EN 50178
