Terasaki Electric (Europe) Ltd.

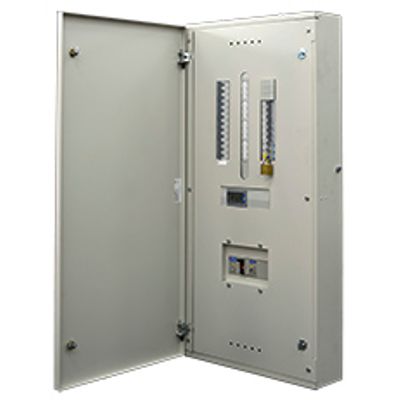

Terasaki - Model Pro-DB - Distribution Boards and Pro-Panel Panelboards
Pro-DB Distribution Boards and Pro-Panel Panelboards are designed for Terasaki circuit breakers, offering co-ordinated protection from transformer to final circuit. These products will allow panelbuilders and installation contractors to offer systems which comply with UK building regulations and product standards.
Most popular related searches
- Standard : BS EN 61439-1
- Busbar Nominal Current : 125A or 250A
- Busbar Fault Current : 25kA Conditional
- Busbar Material : Copper
- Busbar Structure : Fully Shrouded
- Nominal Voltage : 400V AC
- Ingress Rating : IP3X to BS EN 60529
- Enclosure Material : 0.9mm Steel
- Enclosure Colour : Powder-coated RAL 9002
- Supply Earth Terminal : M8 stud
- Supply Neutral Terminal : 50mm2 clamp or M5 stud
- Load Earth Terminals : 16mm2
- Load Neutral Terminals : 16mm2
- Mounting : 4 Keyhole fixings plus central top keyhole for hanging and levelling
- Cable Entry : Removable gland plates top and bottom
- Door Security : Slotted catch as standard keylock optional.
