Solfas - Model TTS1000D -Distribution Transformer Test System
The TTS1000D Series is an advanced Distribution Transformer Test System engineered to streamline transformer testing processes in line with IEC60076 standards. It leverages automated test sequences to achieve high throughput with minimal manual interaction. The system integrates the Solfas Test Suite 2 software, facilitating flexible operation and enabling remote testing via a control unit PC. Key features include automated test plans and report generation, ensuring detailed and accessible test results for each transformer type. The system supports multiple test steps such as No Load Loss, Short Circuit Impedance, and High Voltage AC testing, with customizable additional test options. Safety is prioritized with compliance to EN50191, providing multiple protection mechanisms for operators. The TTS1000D is adaptable to specific workplace requirements with various available accessories.Most popular related searches
Solfas Test Suite 2 software for TTS1000D series guarantees a maximum of flexibility and a minimum of interventions to keep the test duration as short as possible.

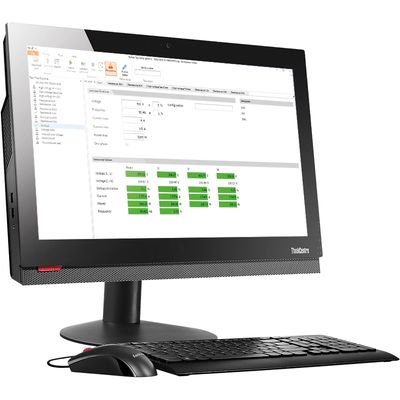

After transformer connection the TTS Transformer Test System is completely operated via a control unit PC. This allows safe, quick comfortable testing from remote. Test plans for each transformer type allow the exact repetition of individual test sequencences. Test reports are automatically generated and stored.
The TTS1000D makes transformer testing easier, faster and more safe.
