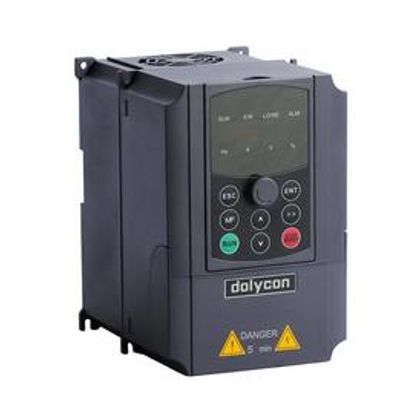

Dolycon - Model VFD - CT200 -High Performance Open Loop Vector Control Frequency Inverters

SHARE

CT200 frequency inverters of 18.5kW~37kW have a built-in DC reactor which can avoid the rectifier circuit damage caused by the sudden change of the grid voltage or the harmonics of phase control load. Various optional power:0.75~1250kW,customization acceptable.

Most popular related searches
frequency inverter
inverter
AC drive
VFD inverter
  • Item NO.: CT200
  • Order(MOQ): 10
  • Type: AC Drive
  • Control Mode: VF or SVC control
  • Rated Power: 0.75kw to 1250kw
  • Output Frequency: 0-600Hz
  • Horsepower: 1hp - 1700hp
  • Various frequency setting methods:UP/DOWN setup,digital setup,analog quantity setting,pulse frequency setting,multi-step speed setting, PID setting,MODBUS communication setting,PROFIBUS communication setting,etc.
  • The drive motor type is compatible with asynchronous motor and permanent magnet synchronous motor.The CT200 inverter supports two sets of motor parameter setting, which can realize the switching control of different motors.
  • The CT200 inverters of 37kW (including) and below are equipped with built-in braking units to consume the feedback energy during braking.
  • Equipped with intelligent expansion port which supports the simultaneous access to two expansion cards to meet the needs of industry special  control.
  • Accurate and reliable speed tracking allows rotating machinery to be started smoothly and without any shocks.
  • Parameter backup can be set and it is convenient for users to backup,debug and recover parameter.
  • Offering a variety of fault protection functions: over-current, over-voltage, under-voltage, over-temperature, phase-failure, overload, etc.
