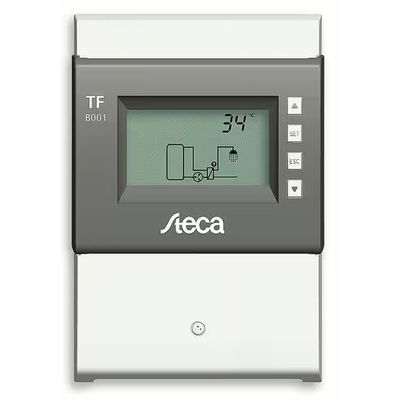

Steca - Model TF B001 -Domestic Hot Water Controllers

In order to minimise the number of required measuring sensors (primarily for reasons of efficiency), a new intelligent and self-learning control algorithm was developed for this purpose in the Steca fresh water laboratories. This facilitates a highly efficient energy transfer from the primary buffer to the secondary DHW circuit with just one multifunctional Grundfos Direct sensor for flow and temperature detection. For OEM customers, there is also a flexible option of integrating alternative analogue flow transmitters.

The Steca TF B001 demonstrates its versatility by facilitating speed control of both standard glandless pumps and innovative high-efficiency pumps.

Due to its small dimensions, the Steca TF B001 is especially easy to integrate into compact fresh water stations. The specially designed switching power supply guarantees the greatest possible efficiency and economical operation. This is particularly characterised by the extremely low self-consumption of the controller. At the same time, the variable input voltage range enables universal and worldwide use.

An electronic load control protects against overload and installation errors.

In order to ensure a continuous and safe hygienic drinking water supply, the Steca TF B001 takes over important system monitoring and safety functions in addition to controller operation. Special error messages are displayed for quickly rectifying faults.

• Compact, multipart designer casing
• Installation versions: Fresh water stations, wall installation, mounting rails
• Wave packet (Triac) and pulse width modulation (PWM) ensure electronic RPM control
• High level of operational safety through fault diagnosis
• Hours-of-operation logger
• Screw terminals allow universal and rapid installation
• Low power consumption thanks to universal and widerange switched-mode power supply
• Variable input voltage range for worldwide controller deployment
• Electronic overloading control and protection

• Multifunction graphical LCD display with backlighting
• Animated representation of the systems and operating states

• Non-verbal menu navigation
• Manual switch for manual, auto, off
