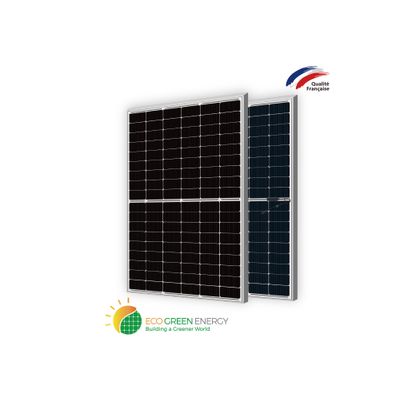

ATLAS TOPCon - Model 10BB -Double Glass 108 cells 430W Module
Founded in 2008, Eco Green Energy is a French brand solar PV manufacturer distributing now its PV module in more than 60 countries over the world. Atlas series solar modules are made only with grade A cells for the highest power generation, and lowest LCOE, and ensured more than 25 years of lifespan. Our modules are produced in our 4.o 1GW factory, with the best machinery of the market, following the highest standards of production and quality control. We launched the ATLAS TOPCON DOUBLE GLASS series, our all-new line of PV modules, including 108 cells module with 430W power output.
- 10BB Monocrystalline Module
- Up to 22.02% efficiency
- Lower LCOE and BOS
- Anti PID/ Low LID protection
- Less Hot Spot Shading effects
- Lower temperature coefficient
- More power output in weak light conditions, such as haze, cloudy, and morning.
- Comprehensive certificates
TOPCon technology belongs to the N-type cells. To manufacture TOPCon cells, tunnel oxide, and polysilicon layers are added to the rear side of the cell. It helps the cell handle higher voltages, which increases power production.
- Increased efficiency and power generation
- Lower degradation
- Lower LCOE and BOS
- Less Hot Spot Shading effects
- Anti PID/ Low LID protection
- Better resistance to high temperatures (lower temperature coefficient)
- Higher efficiency in low-light conditions
Double Glass modules capture sunlight from both sides, thanks to the glass rear side.
- 30% of energy production increase thanks to the back surface
- More production under bad weather conditions
- Lower LCOE thanks to a bigger production in the same area compared to monofacial panels
- Longer module durability
- More resistant to UV and potential-induced degradation (PID).
- Better aesthetics: ideal for pergolas, carports, etc.
Power output (Pmax): 430 W
Power tolerance: 0~+5 W
Module efficiency: 22.02 %
Maximum power voltage (Vmp): 31.88 V
Maximum power current (Imp): 13.49 A
Open circuit voltage (Voc): 38.49 V
Short circuit current (Isc): 14.23 A
Cell type: Monocrystalline (182x91 mm)
Number of cells: 108
Dimensions: 1,724x1,134x35mm
Weight: 22 kg
Max front load (e.g.: snow): 5,400 Pa
Max back load (e.g.: wind): 2,400 Pa
