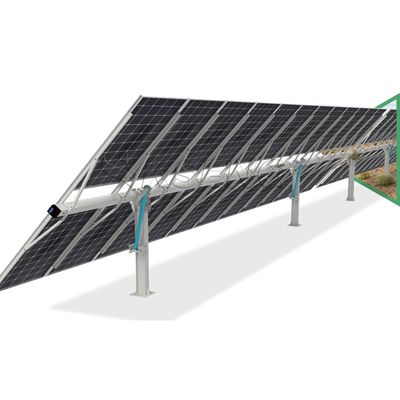

KSENG - Model KST-2P - Double Portrait Horizontal Single Axis Solar Tracking System
The KST-2P Solar Tracker is designed for applications in photovoltaic solar power plants. This solar tracker optimizes the photovoltaic panels' orientation to the sun, maximizing energy capture throughout the day. Utilizing dual-axis tracking technology, it allows for precise adjustments in both the horizontal and vertical planes, enhancing overall efficiency. The KST-2P is built with robust materials for durability and reliability, even in harsh environmental conditions. It is compatible with a wide range of photovoltaic modules and integrates seamlessly with existing systems. The tracker’s control system includes advanced algorithms to ensure accurate tracking and minimal energy loss. Suitable for both large-scale solar farms and smaller installations, the KST-2P provides a scalable solution to increase the energy output of solar power systems.
Kseng Dual Portrait Horizontal Single Axis Solar Tracking System is an advanced solar photovoltaic mounting technology that combines a dual-row solar panel layout with a horizontal single-axis tracking mechanism to optimize solar energy collection efficiency.
Structure Parameters
- System type : Double Portrait Horizontal single-axis tracking system
- Maximum capacity per row : 54KWp {Estimated witn 600W PV -Modules)
- PV-Modules quantity per row : 2PX45, 2Px30
- Tracking range : ±60°
- Tracking accuracy : ±1°
- Materials : HDG Steel, Al-Mg-Zn Coating Steel
- Foundation : Concrete foundation, Steel pile, PHC pile
- Quantity of foundation/MW : 130PCS/MW {Estimated witn 600W PV-Modules;.
Controller Parameters
- Controller system : MCU
- Tracking metnod : Astronomical algorithm+closed-loop control (Ai)
- Signal transmission : Wire (RS485) or wireless (Zig bee)
- Dri : e method : Slew dri : e
- Motor type : DC 24V
- Power supply : AC-powered or self-powered
- Foundation : Concrete foundation, Steel pile, PHC pile
