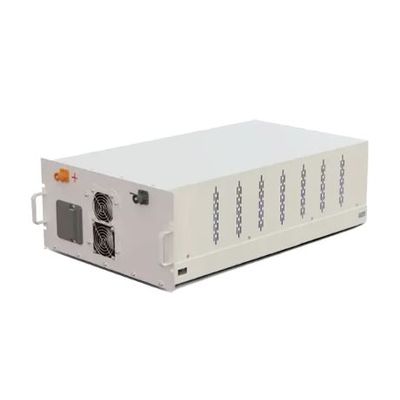

DOWELL ESS - Model LFP 1P16S -Battery Pack Air Cooling 0.5C/1C

Batteries

• Nominal Battery Rack Voltage: 768VDC
• Battery Type : LiFePO4 3.2V/280Ah
• Battery Pack Configuration : 1P16S 14.336kWh
• Battery Rack Configuration : 1P240S
• Battery Rack Voltage Range : 672-852VDC
• Charging/Discharging Current : 140A: 280A
• Battery Disconnect : Integrated
• Cooling concept of Battery Pack : Air Cooling

General Parameters

• Battery Pack Dimension WxDxH: 476x792x231mm
• Charge/Discharge Rate : 0.5C: 1C
• Depth of Discharge : 80%
• Life Cycle : 6000
• Degree of Protection : IP54
• System Efficiency : ~90%
• Allowed Ambient Temperature : -30 ~ 60°C (>45°C Derating)
• Allowed Relative Humidity : 0 ~ 95%
• Battery Pack Weight : ~114kg

Monitoring

• Communication: RS485/Ethernet
• Communication Protocols : MODBUS-RTU/MODBUS-TCP

Certifications

• Battery Cell : CE, RoHS, UN38.3, MSDS, UL, ESG
• Battery Pack : CE, UN38.3, MSDS
• Battery Rack : CE, UN38.3, MSDS
