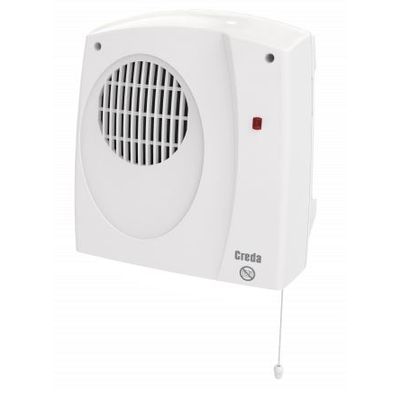

Creda Arezzo - Model CDF2NE -Downflow Fan Heater

SHARE

The Creda downflow fan heater is the popular choice for heating bathrooms and en suites as well as kitchens. The CDF2NE features an energy-saving electronic timer which automatically switches heater off after a 30 minute period to prevent it being left on accidentally.

Most popular related searches
energy saving electronics
energy saving
electrical installation
wall heating
electrical heating
electrical heat
  • Adjustable output at time of installation (1kW or 2kW)
  • Energy saving 30 minute runback timer
  • Heater can be manually switched off before time period expires.
  • Pull cord operation.
  • 2kW maximum output.

With their compact design; The Creda downflow fan heater is the popular choice for heating bathrooms and en suites as well as kitchens. The powerful 2kW output ensures a fast warm up; although 1kW output is selectable on installation for smaller rooms. The product features an un-adjustable 30 minute runback timer; a visual on/off indicator; full safety protection and is simple to install.

Key Features:

  • Colour/Finish/Material: White
  • Controls: Pull cord operation
  • Heat Output (kW): 2
  • Heat Selection: Off / 1.0kW / 2.0kW
  • Heat source: Electricity
  • Installation: Two upper keyhole slots are provided together with a third fixing hole to secure the heater to the wall. 2kW or 1kW heat ouput selectable upon installation. Identical footprint to current FX20 models; meaning that retro-fitting an IPX4 model us incredibly
  • IP Rating: IP22
  • Location of Heat Output: Grille at the bottom.
  • Warranty / Guarantee: 1 Year

Product Identification:

  • Product model number: CDF2NE
  • EAN: 5011139060402

Dimensions:

  • Height (mm): 242.00
  • Depth (mm): 109.00
  • Width (mm): 229.00
  • Weight (kg): 1.10
  • Recommended Mounting Height (m): 1.8

Certification:

  • BEAB: Yes
  • CE: Yes

Additional Features:

  • Construction: Double insulated plastic case. Moulded in flame retardant self extinguishing grade nylon.
  • Cable Exit Point: Middle; Top
  • Cable Length (m): Supplied by Installer
  • Electric supply: ~230/240
  • Element type: 2kW stitched type with thermal fuse protection
  • kW Loading: 1
  • Neon Indicator: Yes
  • Safety Cut Out: Manually resettable thermal overload cut out and thermal fuselink
