DT Research - Model 301Y/MD -Rugged 2-In-1 Medical Tablet

SHARE

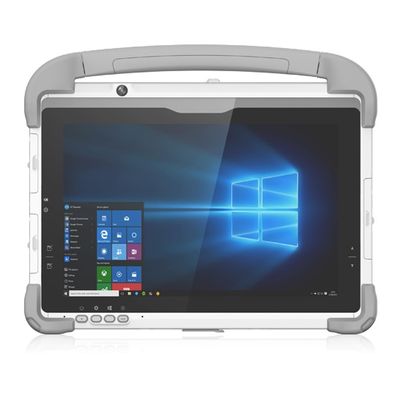

Slim, Antimicrobial, ANSI/AAMI ES60601-1 Certified Tablet for Efficient Operations; The 301Y/MD Rugged 2-in-1 Medical Tablet features the integration of a brilliant 10.1" capacitive touch screen and a high performance, energy-efficient Intel® Core™ i series processor within a slim, lightweight, durable package. With built-in front and back cameras, Wi-Fi as well as optional data capture modules, this medical tablet offers health professionals an effective tool to monitor, record and retrieve patient information.

Most popular related searches
battery safety
energy efficiency
energy performance
  • 10.1" Full-HD capacitive touch screen, 800 nits, digital pen support
  • Intel® Core™ i5/i7 processor
  • Microsoft® Windows® 10 IoT Enterprise or Ubuntu operating system
  • NIST compliant BIOS available
  • Energy Star 8.0 certified
  • ANSI/AAMI ES60601-1 certified with antimicrobial enclosure
  • Docking keyboard option for 2-in-1 (tablet/ laptop) applications
  • Hot swappable battery pack
  • IP65-rated for water and dust resistance
  • MIL-STD-810G for shock and vibration protection
  • Built-in front and back cameras
  • Built-in smart card/CAC reader
  • Barcode scanner
  • NFC/RFID reader
  • 4G LTE/AWS

SYSTEM
CPUIntel® Core™ i5-1135G7, 4-Core, up to 4.2 GHz
Intel® Core™ i7-1165G7, 4-Core, up to 4.7 GHz
RAM8GB to 16GB
Storage256GB to 512GB Flash
Operating SystemMicrosoft® Windows® 10 IoT Enterprise or Ubuntu
NIST ComplianceNIST compliant BIOS available
Display10.1” LED-backlight, high-brightness (800 nits) screen with capacitive touch, outdoor viewable
Display Resolution1920 x 1200
WLANWi-Fi 802.11ax, 2.4GHz/ 5GHz dual band
Control Switch and Buttons1 power button, 2 brightness control buttons, 5 programmable buttons
MicrophoneBuilt-in microphone
SpeakerBuilt-in speaker
CameraFull-HD front camera and 8 megapixel back camera

I/O PORTS
USB Port1 x USB 3.0, 1 x USB Type-C
Headset Jack1 (3.5mm)
EthernetEthernet 10/ 100/ 1000MB Base-T LAN
DC-in1
Smart Card/CAC ReaderFull-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card

MECHANICAL AND ENVIRONMENTAL
AC/DC AdapterInput: 100-240V AC; Output: 19V DC, 3.42A
Battery PackHot swappable battery, 11.4V, 5400mAh
EnclosureABS + PC plastics and magnesium-aluminum alloy; antimicrobial enclosure
Dimensions (H x W x D)7.8 x 11 x 0.86 in/ 198 x 280 x 21.9 mm
Weight3.1 lbs/ 1.4 kg
DurabilityIP65 and MIL-STD-810G certified
RegulatoryFCC/IC, CE/CB, RCM, CCC, ANSI/AAMI ES60601-1, Energy Star 8.0
TemperatureOperation*: -10°C to 60°C (14°F to 140°F), optional -30°C to 60°C (-22°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F)
* For battery safety and optimal functionality and performance, the recommended usage temperature range is from -10°C to 45°C (14°F to 113°F)
Humidity0% – 90% non-condensing

MAJOR OPTIONS SPECS
BARCODE SCANNER2D barcode scanner; reads 1D also
NFC/RFID READERHF 13.56MHz, ISO standard 15693, 14443A(B) & 18000-3 mode-1
MOBILE BROADBAND4G LTE/AWS
