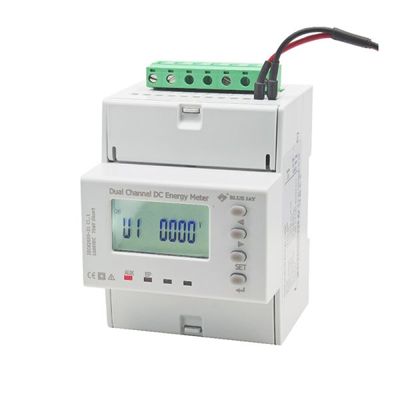

Blue Jay - Model DCEM-4MS -Dual-Channel DC Energy Meter
DCEM-4MS Dual-Channel DC Energy Meter is designed for power measuring and fiscal billing within an EV Charger station. This DCEM-4MS EV charger meter can measure DC currents (with direction), power, total electricity, voltage, forward and reverse electric energy, and each single-circuit electricity, etc. Voltage up to 1000V Max. current 500A Charging Data recording Charging Duration Monitoring Energy Accuracy class 0.2 Certification: CE, MID, or ULMost popular related searches
DC energy meter
energy meters
energy meter
energy metering
electric vehicle charging station
electric vehicle charging
power monitoring
energy monitor
energy monitoring
energy certification
- I/U/P/PE, Max/Min, Demand measurement and time recording
- LCD digital, RS485 Modbus RTU communication protocol access
- 2-way switch input monitoring, 2-way relay output (optional)
- Supports second DC voltage and current input (optional)
- Easy to install, 35mm standard DIN rail installation
- Connected with DC shuns or DC hall effect sensors
- IP54 panel protection & IP20 shell protection
- Time-stamped event recording
- Multi-rate electric energy metering
- Optional DI modules
- Electrostatic discharge immunity: IEC61000-4-2-III
- Electrical fast transient burst immunity: IEC61000-4-4-IV
- Shock(Surge) Immunity: IEC61000-4-5-IV
The DC energy meter can be used for various EV charging station applications from different brands to different KWh EV chargers. It can be used for 7Kwh EV chargers, 11KWh EV charging stations, 30KWh charging piles, 50kwh Charging piles, 60kwh charging stations, 90kwh charging stations, 120kwh charging stations, 150kwh charging stations, 180kwh charging stations, 240kwh charging stations, 350kwh charging stations, 360kwh charging stations, 480Kwh EV Charging stations, etc. Besides, it is compatible with all Brand EV Charging piles such as Ford, Tesla, Tata, Hyundai, Kia, Chevy, etc.
