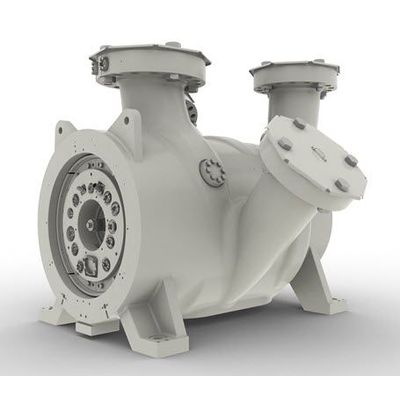

STI - Model C51 -Dual Compartment Gas Compressor
Solar C51 gas compressors are designed for applications with the Taurus 60, Taurus70, Mars 90, Mars 100,Titan 130 andTitan 250 gas turbines.These compressors combine high efficiency and wide flow range with a robust design and ease of restaging. The C51 gas compressor and the C51 Dual Compartment gas compressor with intercooling have the latest state-of-the-art technology combined with the experience and reliability that comes with building and installing over 5000 compressors. These compressors are designed in compliance with API 617, a requirement for the severe environments and operating conditions this equipment may encounter.
Most popular related searches
Units: US
- Stages: 2-12
- Maximum Casing Pressure: 3000 psig
- Maximum Flow: 12,000 acfm
- Maximum Total Head: 13,000 ft-lbf/lbm
- Efficiency - %: >72-85% polytropic
- Maximum Speed: 12,000 rpm
- Maximum Torque: 275,000 lbf-in
Units: Metric
- Stages: 2-12
- Maximum Casing Pressure: 20,685 kPag
- Maximum Flow: 339 m3 /min
- Maximum Total Head: 39 kJ/kg
- Efficiency - %: >72-85% polytropic
- Maximum Speed: 12,000 rpm
- Maximum Torque: 31,071 Nm
