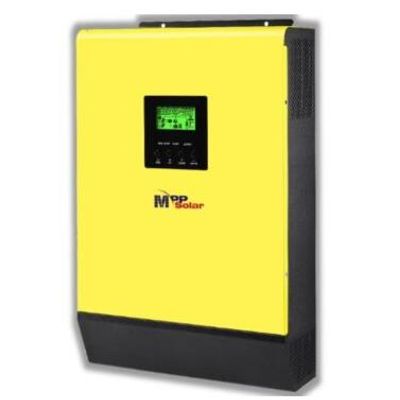

MPP - Model HV V2 6048-T - Dual Output Hybrid Solar Inverter

Derived from HV2-5048, the new HV V2 6048-T maintains most of the original design of its predecessor, including grid-interactive which is the essence of all Hybrid models. This new model is also added with these NEW features.

Most popular related searches

hybrid solar inverter

hybrid solar

solar inverter

solar hybrid inverter

maximum power output from 5KW to 6KW
2X dual AC output terminals for smart load management
maximum PV input current 27A

With the dual output, the 2nd output can be programmed to schedule ON/OFF control, cut-off voltage or SOC, and discharging time directly from LCD display.

Using Generator as AC-Input

Generator rating is recommended to be 30-50% larger than the inverter rating to reduce chances of overload.
Inverter-generators are strongly recommended due to its cleaner output than conventional generators. Unsuitable generator output will be rejected by the inverter in order to protect battery/load.
For obvious reasons, when using generator as AC input, grid-interactive setting must be DISABLED.

2 AC output load terminals for smart load control
Maximum power output now upgraded to 6KW
Maximum PV input current now 27A
Grid-interactive (CE only)
Max 7KW PV array
High PV input 500V (Voc)
Max system charging current 120A
Battery optional mode
Equalization mode available
6KW pure sine wave output, 48V system voltage
Max utility charging current 120A
Max solar charging current 120A
Max Bulk/Float setting 64V
Suitable for off-grid or with grid input
Extensive programmable menu
FREE monitoring software on PC / Mac / Linux
