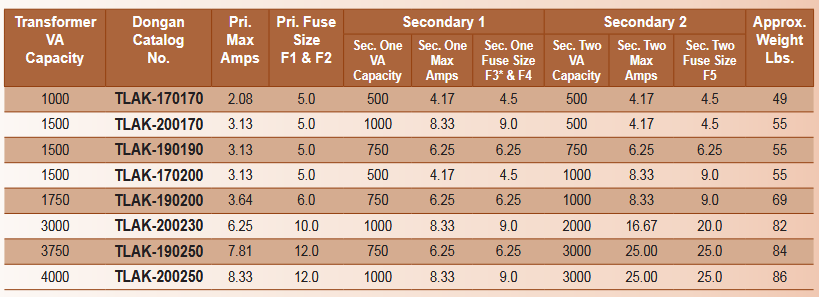

Dongan - Model TLAK Series -Dual Secondary Transformer
Dongan Electric Manufacturing Company is pleased to display its new line of Transformer Lighting Disconnects. The products in this catalog represent the most advanced series of disconnects available in the market today Most important, these products have the approvals and certifications needed to compete and ship virtually worldwide.
- NEMA 1 / IP 23 enclosure.
- Primary Voltage: 480 VAC.
- 50 / 60 Hz.
- Secondary One: 120 VAC.
- Secondary Two: 120 VAC.
- 200K AIC RATED.
- Disconnect features dual isolated secondaries for load isolation.
- Secondary One: Both sides un- grounded.
- Secondary Two: One side grounded.
- 3 position, padlockable cam switch.
- Transformer is copper wound with electrostatic shield (earth metal screen) between primary and secondary and between secondary one and secondary two.
- Finger-safe terminals.
- All overcurrent protection provided: Primary - Class CC, Secondary - Supplementary fuses (13/32” x 1 Z\x”).
- Duplex receptacle optional on all sizes.
- Green “ON” pilot light optional on all sizes.
- Dedicated physical earth terminal.
- Bonded door ground stud.
- Other options: Other voltage combinations available.
