DURBAL - Classic Line Heavy-duty Rod Ends
Rod ends, as standardized by DIN ISO 12240-4, are essential machine elements utilized for transmitting static and dynamic forces, accommodating movements such as swiveling, tilting, and turning. DURBAL offers two distinct lines for these components, termed as the Classic or Basic Line, which necessitate regular maintenance for optimal operation. These rod ends prove critical in diverse applications, ranging from aerospace, motorsport, and automotive industries to renewable energy and hydraulic systems. Engineered to withstand significant loads, these elements feature precision engineering and robust construction, contributing to the longevity and efficiency of mechanical systems. DURBAL's offerings align with industry standards, and their comprehensive product range ensures suitability for various technical applications that require high-performance and reliability in complex mechanical systems.
A rod end (DIN ISO 12240-4) is generally a standardised, ready-to-install machine element used for the transfer of static and dynamic forces in connection with swivelling, tilting and turning movements.
DURBAL offers two lines of maintenance required rod ends (Classic or Basic Line).

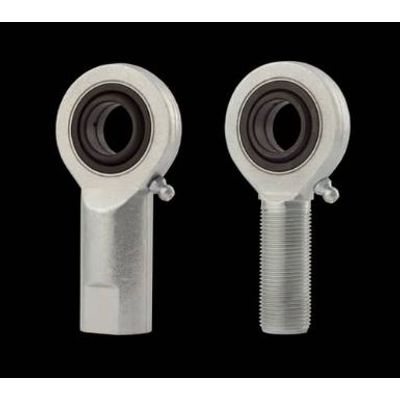

- DURBAL Classic Line heavy-duty rod ends in accordance with DIN ISO 12240-4 consist of a housing with a pressed spherical plain bearing. These rod ends are maintenance-required.
The rod ends are available in the series K and E/EH. These DURBAL Classic Line rod ends in accordance with DIN ISO 8139 can also be combined with pneumatic cylinders. - The maintenance-required DURBAL rod ends of these series are primarily used in situations of alternating stresses or impact loads and are preferred in situations where swivelling movements are large. These rod ends are only suitable for certain rotational movements. The hard-chrome plated joint ball on series K moves on a bearing brass outer ring and the series E moves on a ball bearing steel outer ring and joint ball, which are hardened, ground and phosphated.
Mainly all sizes in this series consist of a forged part and tempered rod end housing. This makes these DURBAL rod ends extremely hardwearing. We also offer the maintenance-required rod ends series K in stainless steel. - From now on, Classic Line products are available on myRollon, Rollon's digital work platform designed to simplify the selection and configuration of linear and rotary motion solutions.
- DURBAL Basic Line standard-rod ends in accordance with DIN ISO 12240-4 consist of a heat-treated steel housing with a pressed spherical plain bearing. These rod ends are maintenance-required. The rod ends are available in series K and E. These DURBAL Basic Line rod ends in accordance with DIN ISO 8139 can also be combined with pneumatic cylinders. The series K rod ends of our Basic Line are suitable for use with axial loads and our series E are suitable for use with high alternating loads. These standard products are distinguished by high precision and dependability as well as by an outstanding cost-benefit ratio.
- From now on, Basic Line products are available on myRollon, Rollon's digital work platform designed to simplify the selection and configuration of linear and rotary motion solutions.
- Ab sofort sind die Produkte der Basic Line auf myRollon verfügbar, der digitalen Arbeitsplattform von Rollon, die die Auswahl und Konfiguration von linearen und rotativen Bewegungslösungen vereinfacht.
