EverCharge - Dynamic Load Management System For Fleets, Condos, Apartments and Workplaces

EV02’s fully integrated wireless mesh network and integrated disconnect means simple and cost-effective deployments.

No cell repeaters, WiFi, ethernet cables, gateways, or control units are required, saving time and money.

• POWER INPUT
• Input Rating : 208V or 240V AC single-phase
• Install : Hardwired
• Standby Power : 1.61 watts
• Metering : CTEP certified revenue-grade meter within 1% accuracy
• POWER OUTPUT
• Output Rating
• EV02-48 Maximum output: 48A
• EV02-80 Maximum output: 80A
• PROTECTION
• Internal Residual Current Detection : 20 mA CCID per UL 2231
• Integrated Over Current Safety Disconnect
• EV02-48: 60A overcurrent protection, 10KA interrupting rating
• EV02-80: 100A overcurrent protection, 10KA interrupting rating
• Electrical Protection : Over-current, short circuit, over-voltage, under-voltage, ground fault, surge protection, over temperature
• USER INTERFACE AND CONTROL
• Status Indicators : LED lights and audible tones
• RFID Authentication : ISO14443 Type A (Mifare), ISO 14443 Type B, ISO 18092
• ENVIRONMENTAL
• Operating Temperature : -22°F to 122°F (-30°C to 50°C)
• MECHANICAL
• Charging Cable Length : EV02-48: 18’ (5.5m), EV02-80: 24’ (7.3m)
• Ingress Protection : NEMA 3R

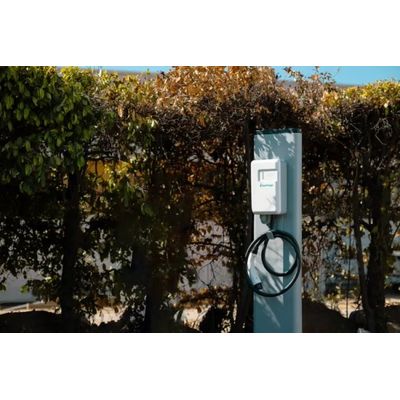

• Mounting Type : Wall-mount, pole-mount, ceiling-mount, and pedestal
• Dimensions : Ht: 13”(330.2mm) W 8”(203.2mm) D: 4.7”(119.5mm)
• Net Weight : 26 lb (12 kg)
• REGULATION
• Certificate : CTEP, Energy Star, OpenADR, UL, cUL
• Charging Interface : SAE J1772
• CONNECTIVITY
• Wireless : EverCharge mesh and optional cellular
