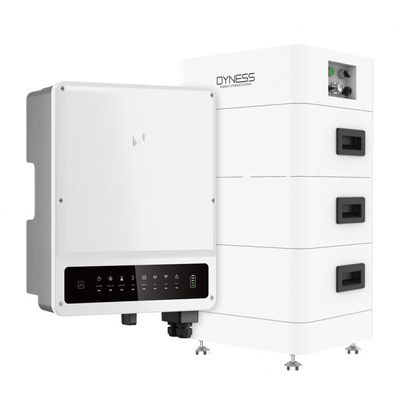

Model T10 - Dyness Tower
FromPhoton Energy NV
Hybrid three-phase voltage inverter with two MPPTs and 10.7 kWh battery. Inverter Features: The inverter is asymmetrical, Innovative solutions for energy storage, Waterproof and dustproof according to the IP65 standard, Free monitoring on a computer or smartphone, Integrated charger and voltage converter, Full power up to 45°C, Quiet operation without a fan, Wide battery voltage range, The device works in network communication mode, even independently of the distribution network, Compatible with high voltage batteries
Most popular related searches
lithium iron phosphate (LFP)
lithium iron phosphate
high voltage battery
battery capacity
battery inverter
solar inverter
energy storage
three phase inverter
inverter
solar hybrid inverter
- Battery capacity: 10.7 kWh
- Usable battery capacity: 9.59 kWh
- Lithium-iron-phosphate (LFP) technology
- Nominal voltage: 288 V
- Charging/discharging current: 22.5 A
- Weight: 146 kg
- Degree of protection: IP 54
- Dimensions: 900x504x380 mm (H/W/D)
- Inverter (1x)
- Wall holder (1x)
- Smartmeter with three CTs (1x)
- Positive connector MC4 ( 2-3x )
- Negative connector MC4 ( 2-3x )
- Positive battery connector (1x)
- Negative battery connector (1x)
- Screws with studs (4x)
- Screw with flat head (6x)
- PE eye (1x)
- Tubing (12x)
- AC terminal block cover (1x)
- Manual
- 1x Tower BDU
- 3x HV9637
Product Dimensions (Mm): 504x380x1062,5(Dyness) + 516x415x180(GW)
Package Dimensions (Mm): 4x(580x480x390)(Dyness) + 680x540x270(GW)
Weight Including Packaging (Kgs): 181,5
