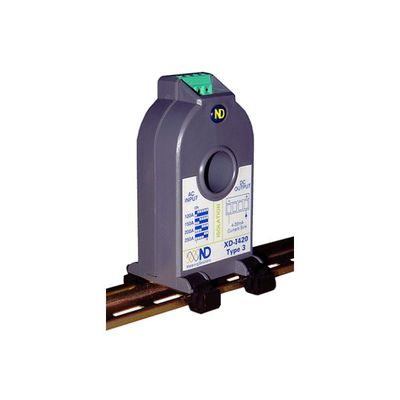

Northern - Model XD - Easiest and Simplest Devices for Measuring Current
The easiest and simplest devices for measuring current; Safe & simple current measurement, for retrofit installation just clip SXDs around the cable, for new installation, no need for CTs, clip XDs onto the rail & pass the cable through the hole, current measurement - 4-20mA or 0-5Vdc outputs - mean sensing or true RMS, energy management - pulse output meter replacement, earth leakage measurement - 4-20mA true RMS from 5mA (XD-R420-0), motor control ON / OFF and failure sensing, actuators - operation / failure, lamp failure - multiple lamps can be monitored with a single XD.
Drives
the simplest device possible for measuring current. For minimising stocking, each transducer may be connected for 5 Amp or 1 Amp input. Neat slim and easy to use. Applicatons include:
- Motor Control
- Failure Detection, including Heating Coils Lighting Circuits
- Energy Management
Control Systems
Where the application is for lower or higher currents, the XD range of transducers can directly measure currents from 5mA to 250 Amp.Minature Transducers for mounting on standard DIN Rails
