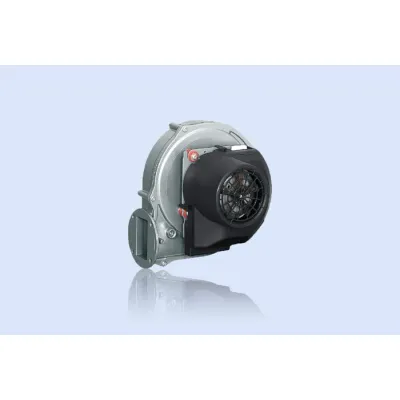

ebm-papst - Blowers for Fuel Cells
The blowers for fuel cells offered by ebm papst are based on their advanced centrifugal blowers originally designed for heating technology applications. These blowers are widely utilized in gas condensing boilers, gas water heaters, gas boilers, and both gas and oil burners. They are recognized for providing reliable performance in various low-output gas appliances and for high boiler outputs. The blowers can achieve a modulation ratio of 1:10, with comprehensive control mechanisms for speed output and regulation. They can be integrated with additional components such as gas valves, automatic burner control units, Venturi mixers, and mass flow sensors, making them adaptable for a perfectly harmonized system. These features make the blowers ideal for applications requiring higher pressures in condensing boiler technology, ensuring optimized combustion processes and reduced NOx emissions. The blowers support voltages ranging from 100-480 V and a frequency of 50/60 Hz, with airflow rates between 50 to 8,000 m³/h and power consumption of 20 to 14,000 W. The enclosure and fan impeller are constructed from durable materials, including aluminum, cast aluminum, metal, and plastic, offering various control and regulation functions.
The basis of the blowers for fuel cells are ebm-papst centrifugal blowers for heating technology. These are used in gas condensing boilers, gas water heaters, gas boilers, gas and oil burners, fuel cells and other gas appliances with very low output or for high boiler outputs.
The ebm-papst blowers for heating technology achieve a modulation ratio of 1:10 thanks to the interface for speed output and speed control. They can be extended with a gas valve, automatic burner control unit, Venturi mixer and mass flow sensor for an optimally harmonised system.
Ideal for higher pressures in condensing boiler technology. For an optimised combustion process and low NOx emissions.
The blowers for fuel cells from ebm papst can be
- with an air volume of 50 m³/h to 8,000 m³/h,
- at a counter pressure of 40 Pa to 7,000 Pa,
- with a size of 71 mm to 450 mm,
- Conveying medium temperature max. 60 °C,
- with a rated voltage of 100 V – 240 V (single-phase) or 380 V – 480 V (three-phase)
- and at a frequency of 50/60Hz
be operated.
We have various product variants in stock.
- Voltage : 100 – 480 V, 24 VDC
- Frequency : 50/60 Hz
- Air flow rate : 50 – 8.000m³/h
- Power consumption : 20 – 14.000 W
- Counter pressure : 40 – 7.000 Pa
- EC technology : Various control and regulation functions
- Enclosure : Aluminium, Cast aluminium
- Fan impeller : Aluminium sheet, Metal, Plastic
- Motor protection cap, motor protection sheathing : Cast aluminium, Metal, Plastic
