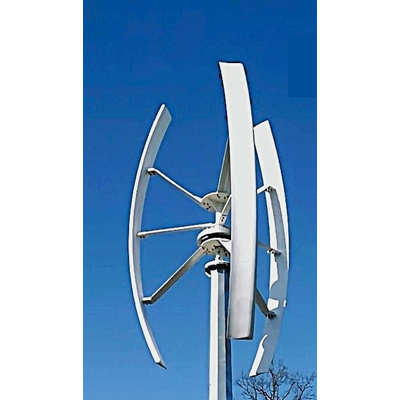

ECO I SOS - Model GV - 3kW -Vertical Axis Wind Turbine

SHARE

Wind turbine Model GV, with options for various output power: 1kW; 2kW; 3kW. STRUCTURE: Free-standing tower MODEL:FS-3K- (6M); (8M). Material: Q235 steel pipe. Surface treatment: Hot-dip galvanizing spraying.

Most popular related searches
vertical axis wind turbine
vertical axis wind
wind turbine
vertical wind turbine
wind turbine modeling
wind energy
turbine model
mini vertical wind turbine
wind energy turbine
  • Nominal power (W) 3000W
  • Max power (W) 3500W
  • Nominal rotor speed (RPM) 160 rpm.
  • Blade length (m) 3.65 m.
  • Rotor blade diameter (m) 2.3 m.
  • Swept area (㎡) 8,395 ㎡
  • Start wind speed (m/s) 2.8m/s (6.27MPH).
  • Ideal wind speed (m/s) 12 m/s (26.88 MPH)
  • Max wind speed (m/s) 50m/s (112 MPH)
  • Working temperature (ºC) -30 to 60 ºC
  • Output voltage (Vac) 48 - 380V
  • Product life cycle > 20 years.
