Trovan - Model LID-665- ANT-613 - Economy Decoder

SHARE

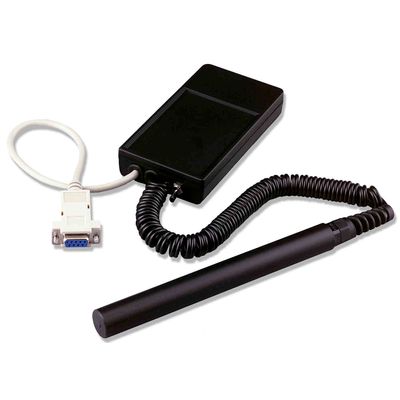

Pictured configuration is for a standard LID-665 board, 9V DC featuring an on/off toggle switch, IP54 rated housing, no lithium battery back-up, RS232 comms cable, with ANT-613 and curly cable).

Most popular related searches
lithium battery
battery backup
  • Dual power supply input: 5 VDC +/-5% or 7.5 VDC - 30 VDC.
  • RS232 interface, 1200 ... 19200 baud.
  • Realtime clock/calendar.
  • 256kb EEPROM for data storage. 6400 IC does without date/time stamp; 3200 with date/time/stamp.
  • Output for buzzer and LED indication.
  • IP65 rated.
  • Windows XP/Vista/7.
  • Use with ANT-613(S), ANT-614(S & W), ANTC-series antennas.
  • Dimensions: 120 x 65 x 22 mm (4.7 x 2.5 x 0.87 in.)
  • CONV_RS232-USB: Converter from RS232 to USB
  • CLK650/665: Lithium battery backup for clock-calendar;
  • DT-100: USB Datalogger
  • LID-665N: RS485 2-wire networkable
  • LID-665A: Access control functionality with Trovan Access Guard software
  • MEMEXP-512: 512kb EEprom to store 12,800 ID numbers without and 6400 ID numbers with date/time;
  • MEMEXP-1024: 1024kb EEprom to store 25,600 ID numbers without and 12,800 with date/time.
  • TM-613-4: Multiplexed antenna driver board for use with 4 antennas to one decoder (for use with LID665/LID650)
