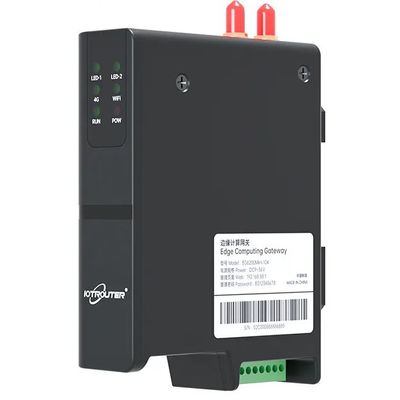

IOTRouter - Model EG8200Mini-104 - Edge Computing Gateway
EG8200Mini-104 is an edge computing gateway designed for industrial IoT. With IEC104 protocol as the core, it supports bi-directional master-slave switching, and is equipped with multi-protocol compatibility, remote operation and maintenance, and intelligent network switching, making it an ideal solution for industrial automation, energy management, and smart city scenarios. Its core advantages include millisecond data acquisition, self-recovery from network outage, and seamless connection of 30+ PLC protocols, which can significantly reduce the cost of equipment deployment and operation and maintenance in complex environments.
Interface type: RS485/RS232/Gigabit network port (WAN/LAN)
Protocol support: Modbus/IEC104/MQTT/TCP/HTTP……
Network type: 4G/WIFI
Positioning support: None
Features:
- Flexible configuration of master and slave stations to realize bidirectional data interaction.
- Multi-device networking, supports interconnection of multiple IEC104 devices in LAN
- Chipset : QUECTEL
- Application : IIOT
- Model Number : EG8200mini-104
- Place of Origin : SICHUAN,CHINA
- Brand Name : IOTROUTER
- Supplier Type : Manufacture
- Power Source : DC 12V
- Antennas : 4G Antenna
- protocol : mqtt
- Communication interface : rs485
- RS485 : 2
- RS232 : 1
- CPU : ARM Cortex-A72 4*1.5G
- Storage : 1G + 8G
- Real Time Clock : Support
- WAN : 1*1000/M Support DHCP Client
- LAN : 1*100/M Support DHCP Server
- USB : 2*USB
- Rated Voltage : DC12V, DC9~28V(Working Range)
- Product name : 4g plc gateway
- Selling Units : Single item
- Single package size : 27X18X6 cm
- Single gross weight : 1.500 kg
