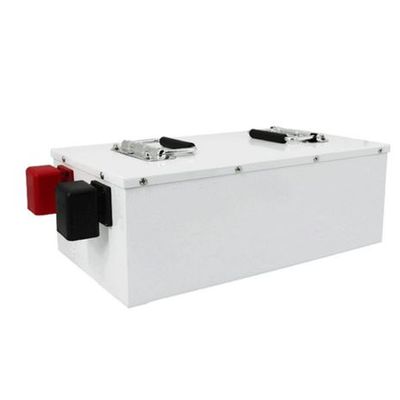

ELB - Model 24V 80Ah - LTO Lithium Battery
ELB 24V 80Ah low temperature LTO lithium battery built with lithium titanate chemistry. Which offer BMS controlled safety, long life,fast-charging performance(Optional Bluetooth function,which can real-time Bluetooth Access to battery SOC, Voltage, Current, Temperature status). This battery have super low temperature performance in -40? and last more than 20000 times.
Most popular related searches
- MOQ: 10units
- Delivery time: 20-35 working days
- Capacity of supply: About 5 million KVAH/year
- OEM/ODM: Acceptable
- Factory Audit Address: Dongguan, China
- Product Delivery Port: Shenzhen, China
- Delivery terms: EXW, FOB, CIF
ELECTRICAL SPECIFICATION
- Nominal Voltage: 24V
- Nominal Capacity: 80AH
- Stored Energy: 1920Wh
- Resistance: /
- Self Discharge Rate:
- Maximum Continous Charge Current: 200A
- Maximum Continous Discharge Current: 200A
- Charge Cut-off Voltage: 28 V
- Discharge Cut-off Voltage: 18V
- Cycle life(25°C): >20000 times@100%DOD
MECHANICAL SPECIFICATIONS
- Dimensions (mm): L400×W200×H140
- Weight: 30kg
- Terminal Type: M8
- Case Material: Stainless Steel
- Enclosure protection: IP65
TEMPERATURE SPECIFICATIONS
- Discharge Temperature: -40 to 60°C
- Charge Temperature: -40 to 60°C
- Storage Temperature: -40 to 60°C
OTHERS SPECIFICATIONS
- Short Circuit Protection: Automatically recover after removal of short
- Life Expectancy (years): Lifetime maintenance free(>30years)
The Main features of ELB 24V 80Ah LTO Battery:
- 24V 80Ah lithium titanate battery.
- 20000tims cycle life@100%DOD.
- Super low temperature performance(Work at -40?)
- Allows super fast 10C charge and high current discharge. (6-15minutes full-charge time)
- Super safe lithium titanate (LTO) chemistry have no risk of explosion orcombustion due to high impact, over-charging or short circuit situation.
- Allows high efficiency charge and discharge cycles.
- Faster charging and lower self-discharge.
