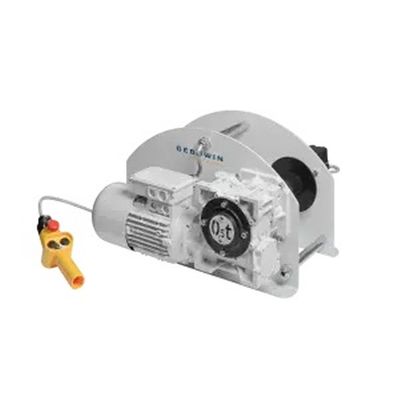

Gebuwin - Model e-W250 -Electric e-Winch 250 kg

SHARE

Newly developed electric pulling and lifting electric winch with a powerful three-phase motor, budget-friendly and strong in its work.

Most popular related searches

electrical power

winch suitable for lifting and pulling
maintenance free bearings
protection classification IP54, insulation class F
standard overload protection as from 1000 kg
powerfull three-phase motor for multirange voltage 380 – 415V / 50 Hz or 60 Hz
1 speed pendant control with 1m cable
standard 2 meter power cable incuding 16A CEEplug
1 layer of paint

Finish : Standard one layer of paint
Capacity 1st layer : 250 kg
Capacity top layer : 109 (12) kg
Lifting speed : 5,2 m/min
Rope diameter-Ø : 4 mm
Rope storage 1st layer : 5,7 meter
Rope storage top layer : 122 meter
Motor output (400 V) : 0,37 kW
Current (400V) : 1 A
FEM classification : 1Bm
Min. breaking load rope : 9 kN
Weight (without rope) : 52 kg
Type name : e-W250
