Perkins - Model 403A-11G - Electric Power Engines
The Perkins 403 range of electric power (EP) engines delivers the same compact benefits of its 2 cylinder stablemate, but takes a stride forward in terms of noise, refinement and power. The 3 cylinder range offers excellent power density and superb fuel economy and is designed to meet your power generation needs in both unregulated territories where extreme conditions are likely, and higher regulated territories with more stringent emissions standards.

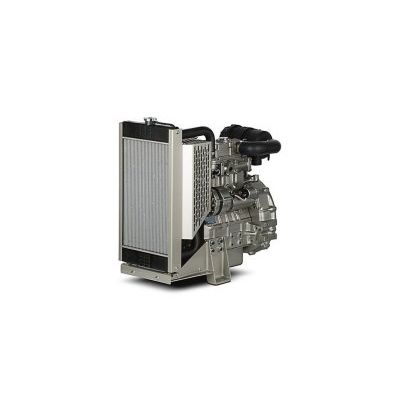

403A-11G ELECTROPAK
1.1 litre 9-12 kVA The 403A-11G ElectropaK is a powerful but quiet 1.1 litre naturally aspirated 3 cylinder unit that is designed for use in unregulated territories.
Power Rating
- Mechanical output 8-9 kWm
- Electrical output 9-10 kVA (7-8 kWe)
- Rated Speed 1500 rpm
Emission Standards
- Emissions This engine does not comply to Harmonised International Regulated Emissions Limits
General
- Bore 77.0 mm
- Stroke 81.0 mm
- Displacement 1.1 litres
- Aspiration Naturally Aspirated
- Compression Ratio 23:1
- Combustion System Indirect Injection
- Rotation (from flywheel end) Anti-clockwise
- Number of cylinders 3 inline
- Cycle 4 stroke
- Cooling system Liquid
- Total coolant capacity 5.2 litres
- Total lubricating capacity 4.4 Litres
Engine Dimensions*
- Length 775.0 mm
- Width 438.0 mm
- Height 702.0 mm
- Dry weight 129.0 kg
Disclaimer
- Note 1: Final dimensions dependent on selected options
When you need power and reliability in a compact application, you can trust the 400 Series EP engines to deliver. Our engineers have carefully designed every component to minimise space. This can come in particularly handy in higher regulated territories where you need to consider size and space for aftertreatment solutions. Some models in the series also offer the convenience of switching between engine speeds and electrical frequencies to match your application and territory perfectly.
The pressure on end users to reduce the fuel consumption of their machinery favours the 3 cylinder 403. Its power density, durability, fuel efficiency and quiet operation set it apart from similar sized competitors’ engines. The 403 range’s quiet operation makes it an excellent option where noise is a concern, particularly if you’re operating in urban areas.
The reliability of the 403 range, its uncomplicated indirect injection fuel system, ease of installation and warranty offering all combine to keep your ownership costs to a minimum. As the 400 Series is built on a common engine platform, you can also upgrade easily and affordably.
Air inlet system
- Mounted air filter
Control system
- 12 volt Electronic Shut Off Solenoid (ESOS) energised to run
- 12 volt starter motor and 12 volt 15 amp alternator with DC output
- Glow plug cold start aid and heater/starter switch
- Oil pressure and coolant temperature switches
Cooling system
- Thermostatically-controlled system with belt driven coolant pump and pusher fan
- Mounted radiator, piping and guards
Flywheel and flywheel housing
- Flywheel housing SAE 5 long
- High inertia flywheel to SAE J620 Size 165.1 mm (6½ in) heavy
Fuel system
- Mechanically governed cassette type fuel injection pump
- Split element fuel filter
General
- Front and rear engine mounting brackets
Oil system
- Spin-on full flow lub oil filter
- Wet steel sump with filler and dipstick
