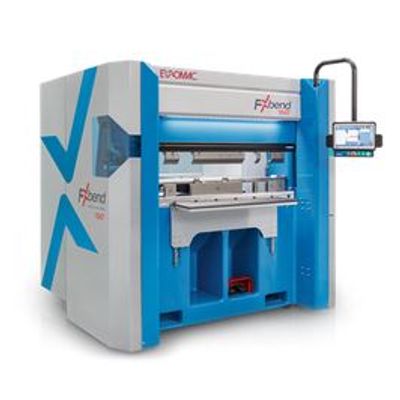

Euromack - Model FX Bend 1547 -Electric Press Brake
FromEuromack S.p.A.
Innovation, reliability and productivity. If you had to define FX Bend through three words would be certainly these.
Most popular related searches
- Max. bending force (kN) 470
- Bending length (mm) 1530
- Y axis stroke (mm) 250
- Y axis speed (mm/sec) 200
- Inclination (mm) (Y1-Y2) + - 10
- Opening (mm) (table to ram) 470 (395)
- 4 AXES BACKGAUGE (X-R-Z1-Z2) X axes stroke (mm) (4 axes X-R-Z1-Z2) 375 + 400
- R axes stroke (mm) (4 axes X-R-Z1-Z2) 180
- Z axes stroke (mm) (4 axes X-R-Z1-Z2) 1500 - 85x2
- X axes speed (mm/sec) (4 axes X-R-Z1-Z2) 250
- R axes speed (mm/sec) (4 axes X-R-Z1-Z2) 600
- Z axes speed (mm/sec) (4 axes X-R-Z1-Z2) 1100
- 6 AXES BACKGAUGE (X-R-Z1-Z2) X axes stroke (mm) (6 axes X1-X2-R1-R2-Z1-Z2)
- 375 + 705
- R axis stroke (mm) (6 axes X1-X2-R1-R2-Z1-Z2) 180
- Z axis stroke (mm) (6 axes X1-X2-R1-R2-Z1-Z2) 1350
- X axis speed (mm/sec) (6 axes X1-X2-R1-R2-Z1-Z2) 1000
- R axis speed (mm/sec) (6 axes X1-X2-R1-R2-Z1-Z2) 650
- Z axis speed (mm/sec) (6 axes X1-X2-R1-R2-Z1-Z2) 800
- Connections wireless/USB port YES/2
- Motor power (kW) 2x5,2
- Connected load (kWa) 6
- Approx. weight (kg) 4400
