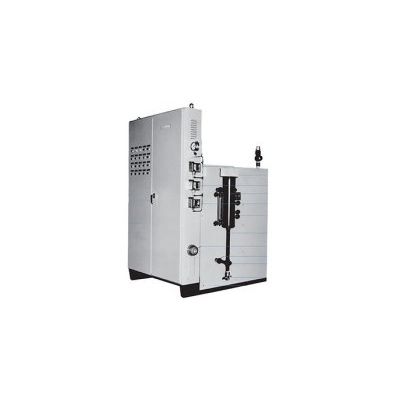

Sussman - Model SVS -Electric Steam Boiler

Sussman SVS Electric Boilers are safe, versatile easy to-use heat sources for low or high pressure steam. Applications include steam for:

Most popular related searches

ENGINEERED FOR:

Insulated Carbon Steel Pressure Vessel ASME Section 1, 150 PSIG with “S” Code Stamp.
Built to UL, National Board Registration
Standard 150 PSIG Design – Higher Pressures Available
Fully Insulated Vessel, 2” Thick Insulation
ASME Code Safety Valve
NPT Inlet/Outlet Fittings Up to 3-1/2”, Flanged Inlet/Outlet Fittings for 4” and over
Vertically Mounted Incoloy Sheathed Immersion Elements Complete with Epoxy End Seal
NEMA I, Epoxy Finished Gasketed/Louvered Control Panel and Heater Enclosure
Blowdown/Drain Valve
Pressure Gauge with Isolating Stopcock
Liquid Level Gauge Glass Assembly
Backflow Check Valve and Solenoid Feedwater Valve
Standard Pressure Range 20-150 PSIG (higher pressures may be available on request)
Modulating Pressure Control (standard over 90A)
Electronic Feedwater Control
Boiler Operating Mode Indicator Lights
Sub-Divided Circuit Fusing, Class “J”, HRC Form 1
Industrial Rated Magnetic Contactors
Manual Reset High Limit Pressure Control
Main & Auxiliary Low Water Cut Off Controls
120V Control Circuit c/w On/Off Switch and Indicating Pilot Light
120VAC Control Circuit Transformer w/primary & secondary fusing
Manual Reset Low Water Cutoff
