AB & Co - Model Type K-DH -Electric Steam Boiler

• Fast and simple to install and connect
• Easy to operate, almost no maintenance
• Only very few regulations from authorities *
• Design acc. PED 2014/68/EU & EN-standards
• CE-marked and with full documentation

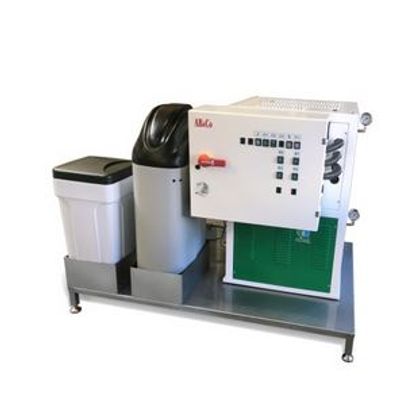

Commercial type electric steam generator unit in compact design complete with :

• Full automatic steam boiler control
• Choice to effecuate basic power stages
• Build-in feed water pump
• Level & feed water regulator
• Armatures, valves, indicators
• All safety equipment and devices

Many standard options and special solutions :

• Build on skid-mounted frame, on trailer etc.
• Up to 1.500 kg/h using a modular system design
• All-stainless-steel for production of Clean Steam e.g. culinary steam or other delicate applications. This is the far most economical solution on  the market for numerous clean steam applications

• Steam Boiler Model
• AB&CO - Type K-DH
• Steam Output: Up to 270 kg/h (each section)
• Working Pressure: Up to 8½ bar
• Steam Temperature: Up to 178°C
• Power Consumption: Up to 180 kW (each section)
• Current Consumed
• @ 3 x 400 V: Up to 260 A  (each section) (1 kg/h Steam ~ 1 A)
