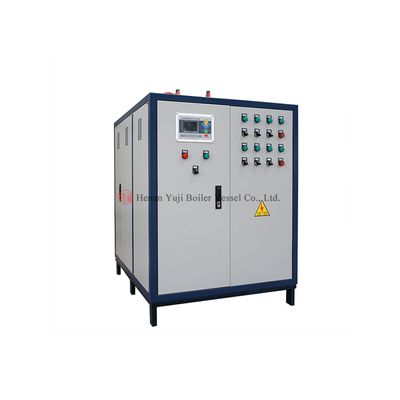

Yuji - Electric Vertical Steam Generator Boiler
Adopt advanced electric heating tube, its surface load is low, long service life. The boiler starts and stops quickly, the operating load adjustment range is large, the adjustment speed is fast and the operation is simple. The heating element automatically adjusts the number of heating tube input groups according to the temperature difference and the change of load, and can automatically change the input sequence, which not only saves energy, but also makes the running time of each group of heating tube balanced, so as to even the life of heating tube.
- Model: LDR (Electric Heating) Series
- Steam Capacity: LDR (Electric Heating) 0.01-0.4T/H
- Steam Pressure: 0.4/0.7Mpa (Optional according to demand)
Heating elements can be manually put in or stop, convenient for users to flexibly adjust the boiler heat.
Advanced computer boiler controller, reliable performance, high degree of automation, easy to use and other advantages.
The use of accessories, are selected from domestic and foreign high-quality products, and through the furnace test inspection, to ensure the long-term normal operation of the boiler.
Quick steam generation
Steam is quickly generated (3-5 minutes) after the boiler is started, and it reaches high temperature and pressure soon
2. High thermal efficiency
(1) Vertical water pipe ,membrane wall structure ,increase heat absorption area and reduce heat loss,save fuel
(2) Equipped with energy saver, improve thermal efficiency
3. High-end automatic control system
National standard electric control components and world brand burner , can realize the automatic operation stablely.
4. High security
(1) Very small internal water capacity, does not need annual inspection
(2) Equipped with safety interlock device, such as water shortage, overpressure, overtemperature, air leakage, motor overload and other safety protection functions
5. High reliability
(1) The whole equipment is manufactured according to the standard of large steam boiler
(2) Safety protection devices: pressure controller, pressure transmitter, safety valve, pressure gauge, water level automatic control, etc.
6. Exquisite structure
Unique appearance design ,small and practical.
