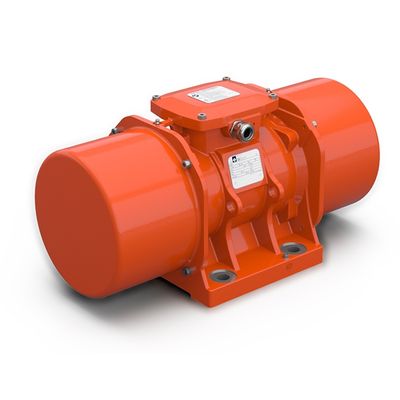

OLI - Model MVE-Exe Increased Safety Range -Electric Vibrating Motors
FromOLI S.p.A.
Electric vibrating motors "MVE-Exe" range is designed for applications in various industrial sectors on machines and vibrating tables in the presence of potentially explosive dusts and / or gases. Available in 2, 4, 6 and 8 poles with different voltages, they are suitable for use with inverters (variable frequency drives) and have a centrifugal force ranging from 50 to 10,000 kg, adjustable on each individual model.
Most popular related searches
Applications
- Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.
- The only range of engines suitable for applications in the presence of ALL types of potentially explosive gases (from methane to hydrogen).
Features
- Centrifugal force: 50 ~ 10,000 kg
- Voltages from 220 to 690VAC
- Windings impregnated under vacuum – with class F insulating materials
- Optimized design and components for demanding applications.
Advantages
- Greased for life = zero maintenance *
- Wide range of centrifugal forces for all applications
- Different voltages available for global applications
- Suitable for applications in the presence of ALL types of potentially explosive gases (from methane to hydrogen)
- * for specific applications please contact our technical service
Certifications
- ATEX Ex II2GD and ETL, Class II, Division 2
Options
- 2, 4, 6, 8 poles, three-phase
- Accessories
- Standard PTC from size 60 (available on request for smaller sizes)
- Removable covers for quick mass adjustment – on request from size 60
- Stainless steel covers on request from size 23
- Extended motor shaft for connection of multiple units with mechanical coupling
Applications
- Automatic Block Machine
- BIG-BAG EMPTYING
- Bin Activator for Silo
- BULK BAG / BIG-BAG FILLING / COMPACTION
- Circular sieve
- Compacting table for powders
- Concrete Compaction & Precast / Formwork & Mould
- Continue vibro-paver
- Deburring / polishing
- Decoring
- Dewatering Screen
FEEDER, CONVEYOR & EXTRACTOR
- Filter Cleaning
- Fluid Bed Dryer
- Gravimetric separator / Densimetric table
- Grizzly
- Pipes & Chutes
- Rectangular sifter
- Scalping screen
- Shake-out / Knock-out
- Shale Shakers
- Silos and Hopper Emptying
- Soil Screen
- Sorting / Sizing Screen
- Spiral Elevator
- Truck
Sectors
- Building & Construction
- Food & Feed
- Heavy Industries
- Plants & Machinery
- Plastics & Chemical Processing
- Recycling & Environment Technology
- Renewable Energies
