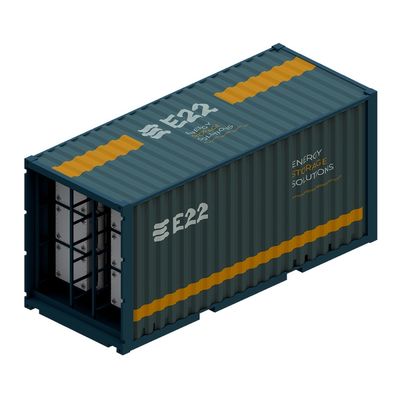

E22 - Electrical 250kW Energy Storage System
This electrical energy storage system is a Vanadium electrochemical product that accumulates several hours of energy storage. The system is integrated within a modular block from 250 to 330kW that allows the parallel connection of several units to each other, thus having the possibility of configuring the system according to the requested needs. The solutions are delivered in complete containers and include Remote Diagnostic and Continuous Monitoring of all parameters, including the State of Charge (SOC). E22 offers several services to its customers, sucha as the Turn Key package of the whole installation or a more Flexible Delivery of certain required elements.
Our 250 kW Vanadium Battery, VCUBE250, has the European Conformity mark (CE) according to Directives 2014/35/EU and 2014/30/, and taking as reference the certifications IEC 61439-1:2011, IEC 61439-2:2011 and IEC TS 62933-5-1: 2017.
FAST RESPONSE
Fast dynamic Response: <70ms from maximum charge to maximum discharge
LONG LIFE
Product life exceeds 10,000 cycles at full power and 100% depth of discharge (DOD)
SOC
Operation at partial (SOC) states of charge has no impact on the equipment’s lifetime, allowing effective up and down ramp control
ENVIRONMENTAL PERMITS
Ease of obtaining environmental permits
OPERATIONAL LIFE
Operational life greater than 20 years for most components
LOW COMPONENT COUNT
Low component count and robust design yield very high availability
LOW COSTS
Low maintenance costs and unmanned operation
FIT CUSTOMER NEEDS
Independent power and energy scaling allow systems to exactly fit customer needs
ALWAYS AVAILABLE
No electrode management is required, so system is available continuously
