GISMA - Model Series 10 -Electrical Circular Connectors for Harsh Environments

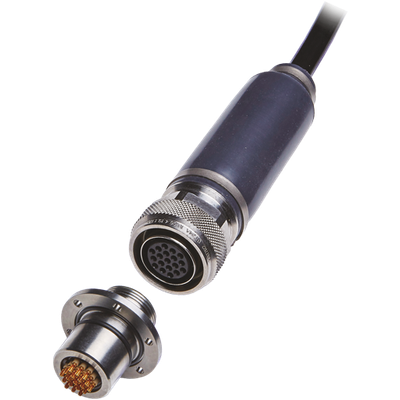

Series 10 electrical circular connectors are engineered to withstand harsh environmental conditions, particularly undersea applications and underwater plug-in systems. These connectors feature a robust metal housing and are equipped with a longitudinally waterproof, vulcanized elastomer insulating body and a patented lip seal, ensuring high standards of functionality and safety. The system connectors, available with titanium housing, have a design life of 25 years. An optional sealing ring enhances long-term performance across various applications. Additionally, the flat thread in the coupling nut allows the connectors to tolerate significant contamination. Main application areas include renewable energy, industrial applications, marine technology, marine research, and offshore industries, utilizing materials such as bronze, stainless steel, and titanium.
The Series 10 electrical circular connectors with robust metal housings are specifically designed for harsh environments, underwater applications, and underwater connections. Under demanding environmental conditions, the longitudinally watertight vulcanized elastomer insulator body with patented lip seal meets the highest standards of function and safety.
System connectors with titanium housings are designed for a 25-year product lifecycle. An optional sealing ring in the mating area can further enhance long-term performance for various applications. The flat thread in the union nut tolerates even heavy contamination.
- Offshore industry
- Marine technology
- Marine research
- Renewable energy
- Industrial applications
- Available in bronze, stainless steel, titanium
- unplugged, watertight under pressure
- pluggable when wet or underwater
- high pressure water resistance
- Special solutions available for water depths up to 8000 m
- Lip and cone seal in the plug-in area
- Polarity diagrams for 3 to 61 contacts
- Operating voltages up to max. 6.6 kV
- Operating current up to max. 1000 A
- Test pressure up to 800 bar
- robust contacts
- robust Keyway
- End housings available for large cable diameters
