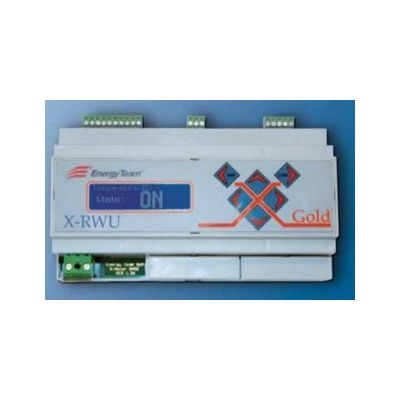

EnergyTeam - Model X-RWU Gold - Electrical Power Dataloggers

Monitor, Store, Manage

• System status
• Alarms
• Analogue measurements (4-20mA, 0-10V, etc.)
• Process temperatures
• Room temperatures
• Measurements coming from various meters

Available Options
The Bridge 232/485 conversion module with 230Vac power supply in 4 DIN module container, can be used to convert the 485 signal coming from the X-Meter in 232 serial towards the communication port of the Personal Computer. USB/485 version also available. The module can be used to convert the 485 signal coming from the X-Meter to the USB port on a Personal Computer. Galvanic isolation of the USB connection ensures maximum protection of the PC from disturbances or voltage surges coming from the field. Designed with industrial features. No bulky external power supply is needed as it is self-powered. One of a kind.

The GSM/GPRS modem inside the X-Meter device allows for the sending of emails and SMS associated with conditions and alarms coming from the “field”, connected with the XM3 function (Module 8 digital inputs). Furthermore, thanks to this module, it is possible to control the X-Meter device remotely for the online data publication service through our website, www.energyteam.it. Our site can be accessed at anytime, anywhere with a userid and password. The displayed data can also be converted into Excel and Access format and downloaded to your PC. This function is possible with at least the XM1 function enabled..

The Ethernet card inside the device allows X-Meter to be connected to the corporate Ethernet or intranet from various data collection and monitoring stations through a simple IP address. This function is possible only with the XM1 functions and Es3 software enabled.

The “programmable clocks with perpetual annual calendar” firmware module is used to enable the 4 Optomos outputs on the X-Meter DIN for the automatic control function to switch specific utilities on and off (controllable loads e.g., lights, motors, fans, etc.). Each X-Meter can be programmed with up to 12 daily profiles +profiles 2 special periods + 20 special days. Each profile defines 8 conditions changes within the 24 hours per day for each of the 4 associated loads. Up to 128 X-Meters can be connected for a total of 512 controllable loads. This function is possible only with the XM1 function enabled.

Inserted in a 1 Mod. DIN containers, it allows for the interfacing of voltage or current signals coming from the field to the X-Meter device inputs, allowing the display and storage of the measured values. The X-Meter device is able to power up to 2 XM8 modules. Any additional modules must be supported through a 12Vdc power supply (not included). There are 11 possible interface configurations for voltage and current signals. Guaranteed precision of 0.5% of the full scale.

Inserted in a 1 Mod. DIN container, it allows for the interfacing of PT100, PT500 and PT1000 temperature probes at the inputs of the X-Meter device, enabling the display and storage of the measured temperatures. The X-Meter device is able to power up to 2 XM8 modules. Any additional modules must be supported through a 12Vdc power supply (not included). Guaranteed precision at0.5 % of full scale.

Container suitable for wall installation. It can read the room temperature (range -10 °C +65°C +- 1.5°C) and transfer it to the XMETER device inputs, thus enabling the displaying and storing of the temperatures measured. The X-Meter device is able to power up to 2 XM10 modules. Any additional modules must be supported through a 12Vdc power supply (not included). It is particularly suitable to monitor and save the room temperatures in Ced, LV/MV panels, Warehouses.
